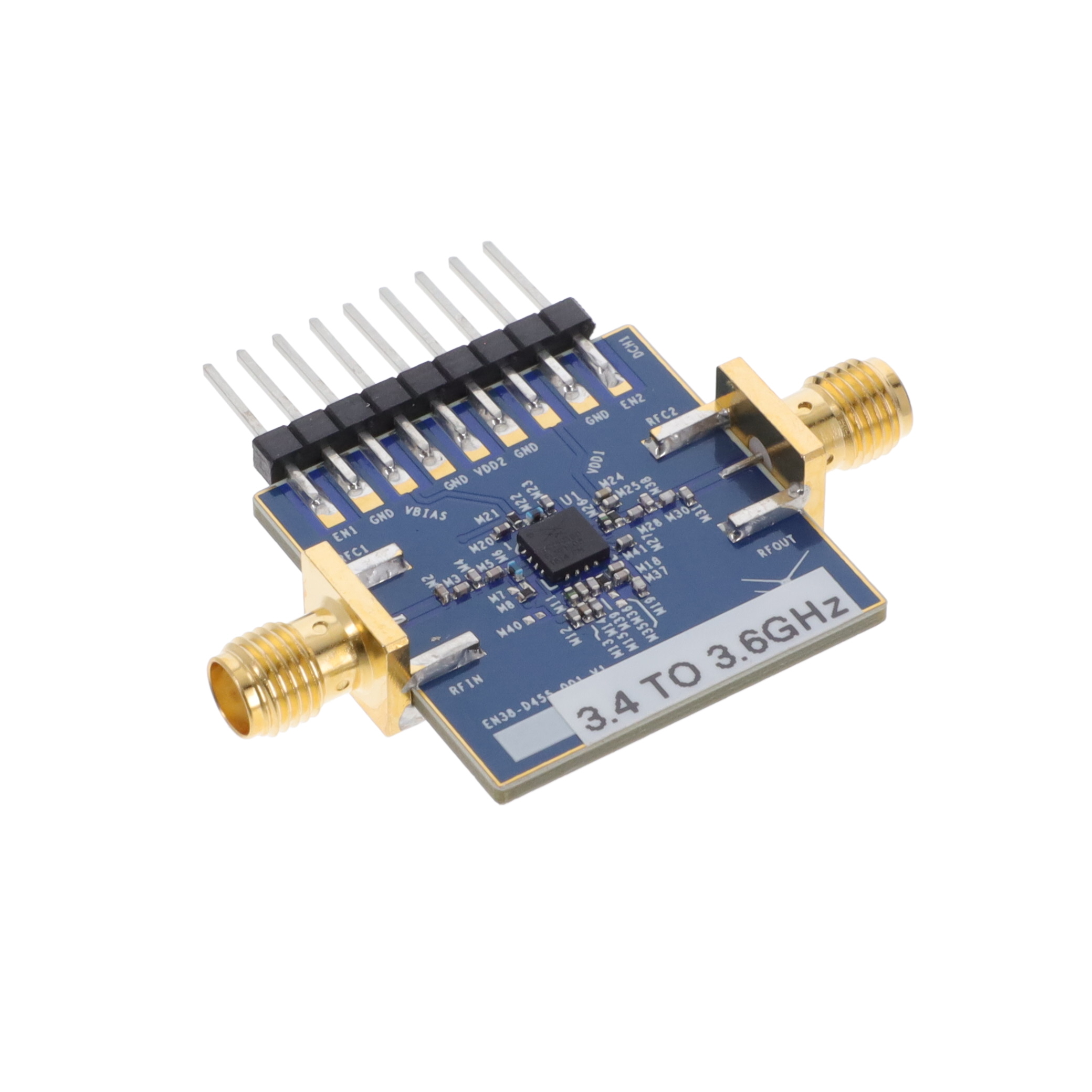

SKY67180-306EK1

Active

Skyworks Solutions Inc.

EVALUTION KIT (3.4 TO 3.6 GHZ OP

Search across all available documentation for this part.

Active

Skyworks Solutions Inc.

EVALUTION KIT (3.4 TO 3.6 GHZ OP

Technical Specifications

Parameters and characteristics for this part

Specification	SKY67180-306EK1

For Use With/Related Products	SKY67180-306LF
Frequency [Max]	3.6 GHz
Frequency [Min]	3.4 GHz
Supplied Contents	Board(s)
Type	Amplifier

Part	Current - Supply	Frequency [Max]	Frequency [Min]	Gain	P1dB	Test Frequency	Noise Figure	Supplier Device Package	Mounting Type	RF Type	Package / Case	Type	Supplied Contents	For Use With/Related Products	Frequency
Skyworks Solutions Inc. SKY67180-306LF	125 mA	3.8 GHz	1.5 GHz	31 dB	17 dBm	3.5 GHz	0.8 dB	16-QFN (4x4)	Surface Mount	Cellular GSM HSDPA LTE W-CDMA	16-VQFN Exposed Pad
Skyworks Solutions Inc. SKY67180-306EK1		3.6 GHz	3.4 GHz									Amplifier	Board(s)	SKY67180-306LF
Skyworks Solutions Inc. SKY67180-306EK2												Amplifier	Board(s)	SKY67180-306LF	2600 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 106.24

General part information

- SKY67180-306LF Amplifier 3.4GHz ~ 3.6GHz Evaluation Board

Technical documentation and resources

No documents available
