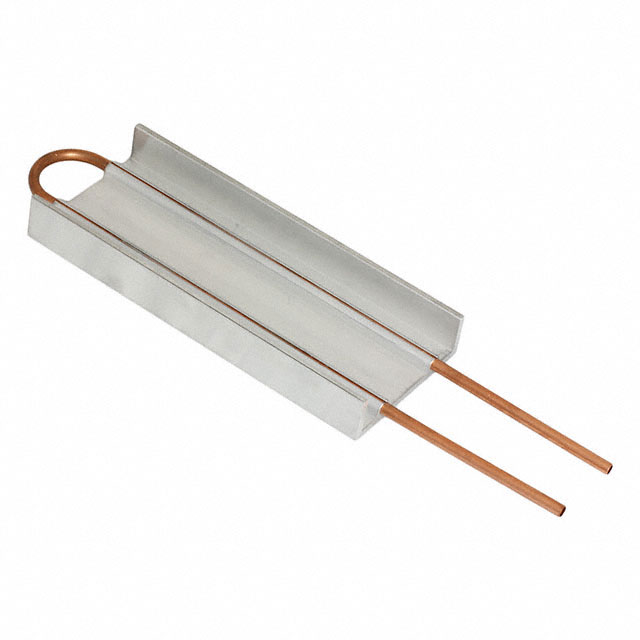

180-11-12C

Active

Wakefield-Vette

COLD PLATE HEAT SINK 0.041C/W

Search across all available documentation for this part.

Active

Wakefield-Vette

COLD PLATE HEAT SINK 0.041C/W

Technical Specifications

Parameters and characteristics commom to parts in this series

COLD PLATE HEAT SINK 0.041C/W

Part	Product Type	Thermal Resistance @ GPM	Dimensions - Overall [y]	Dimensions - Overall [z]	Dimensions - Overall [y]	Dimensions - Overall [z]	Dimensions - Overall [x]	Dimensions - Overall [x]	Weight	Weight	Weight [custom]	Weight [custom]
Wakefield-Vette 180-11-12C	Cold Plate, Passive	0.041 °C/W	127.2 mm	1.5 "	5 "	38.1 mm	19.69 "	500.1 mm	2.9 lbs	1.3 kg
Wakefield-Vette 180-11-6C	Cold Plate, Passive	0.084 °C/W	127.2 mm	1.5 "	5 "	38.1 mm	13.69 "	347.7 mm	1.5 lb	680.4 g
Wakefield-Vette 180-11-24C	Cold Plate, Passive	0.02 °C/W	127.2 mm	1.5 "	5 "	38.1 mm	31.69 in	804.9 mm			5.7 lbs	2.6 kg

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Passive, Cold Plate 0.041°C/W @ 1.5 GPM
