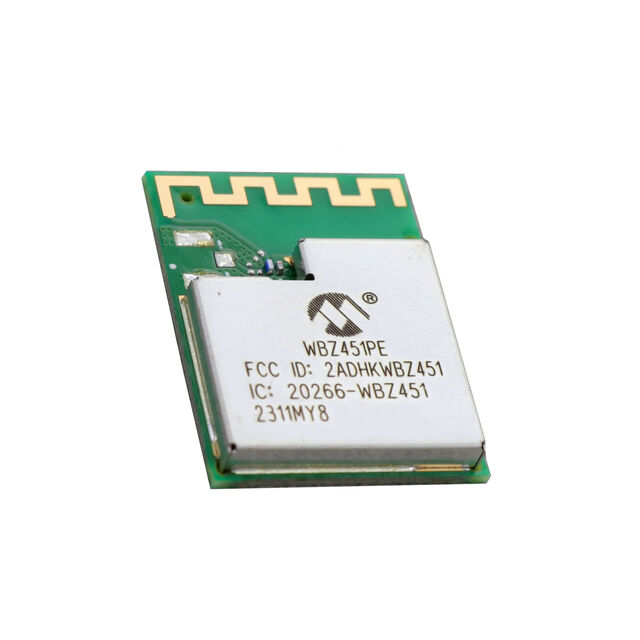

WBZ451PE-I
ActiveGLOBAL REGULATORY CERTIFIED, RF-READY MULTI-PROTOCOL MCU MODULE WITH PCB ANTENNA
Deep-Dive with AI
Search across all available documentation for this part.
WBZ451PE-I
ActiveGLOBAL REGULATORY CERTIFIED, RF-READY MULTI-PROTOCOL MCU MODULE WITH PCB ANTENNA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WBZ451PE-I |
|---|---|
| Antenna Type | PCB Trace |
| Data Rate | 2 Mbps |
| Frequency | 2.4 GHz |
| Memory Size | 1 MB |
| Modulation | O-QPSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 39-SMD Module |
| Power - Output | 12 dBm |
| RF Family/Standard | Bluetooth, 802.15.4 |
| Sensitivity | -103 dBm |
| Serial Interfaces | HCI, PWM, USART, JTAG, SPI, IrDA, UART, I2C, GPIO |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.29 | |
| 100 | $ 5.90 | |||
| Microchip Direct | TRAY | 1 | $ 5.66 | |
| 100 | $ 5.31 | |||
| 1000 | $ 4.87 | |||
| 5000 | $ 4.65 | |||
WBZ451PE Series
Global Regulatory Certified, RF-Ready Multi-Protocol MCU Module With PCB Antenna
| Part | Sensitivity | Memory Size | Package / Case | RF Family/Standard | Antenna Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Frequency | Power - Output | Serial Interfaces | Modulation | Data Rate | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology WBZ451PE-I | -103 dBm | 1 MB | 39-SMD Module | 802.15.4, Bluetooth | PCB Trace | 3.6 V | 1.9 V | 2.4 GHz | 12 dBm | GPIO, HCI, I2C, IrDA, JTAG, PWM, SPI, UART, USART | O-QPSK | 2 Mbps | Surface Mount | 85 °C | -40 °C |
Description
General part information
WBZ451PE Series
[Application Examples](https://mplab-discover.microchip.com/v2/category/com.microchip.code.examples?dsl=wbz45)
---
Part of the [PIC32CX-BZ family](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/32-bit-mcus/pic32-32-bit-mcus/pic32cx-bz), WBZ451PE is certified to Bluetooth® 5.2, Zigbee® 3.0, Thread 1.3.0, and supports IEEE® mesh protocols as well as multi-protocol operations. Designed from the ground up to enable you to go to market quickly, WBZ451PE is powered by a 64 MHz ARM® Cortex® M4F and is packed with features including OTA, hardware arbitration for multi-protocol wireless, hardware-based security accelerator, a rich set of peripherals among others.
