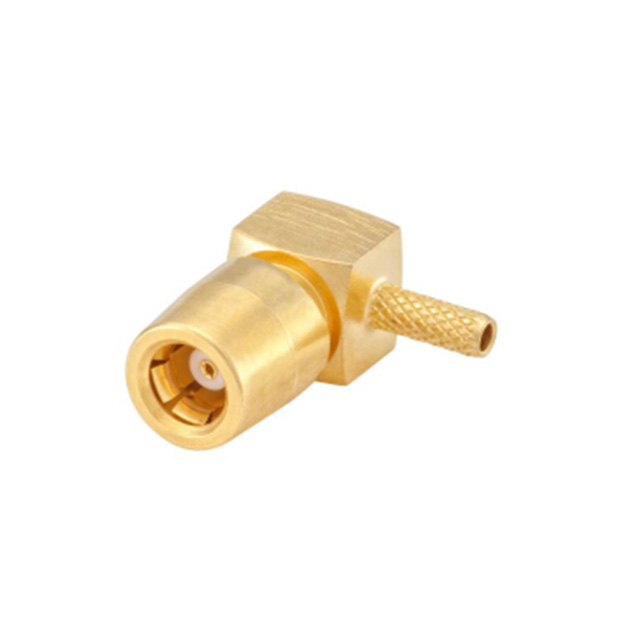

59K204-301L5

Active

Rosenberger

CONN SMB JACK R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN SMB JACK R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	59K204-301L5

Body Finish	Gold
Body Material	Brass
Cable Group	RG-178B, 196A
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 End Cap
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Center Contact Plating	Impedance	Frequency - Max [Max]	Connector Style	Voltage Rating	Body Material	Number of Ports	Body Finish	Connector Type	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Cable Group	Includes	Mounting Type	Fastening Type	Contact Termination	Housing Color	Dielectric Material	Shield Termination
Rosenberger 59K204-301L5	Gold	50 Ohms	4 GHz	SMB	250 VDC	Brass	1	Gold	Female Socket Jack	500	155 °C	-55 °C	Beryllium Copper	196A RG-178B	1 Connector 1 End Cap 1 Ferrule	Free Hanging (In-Line) Right Angle	Snap-On	Solder	Gold	Polytetrafluoroethylene (PTFE)	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
