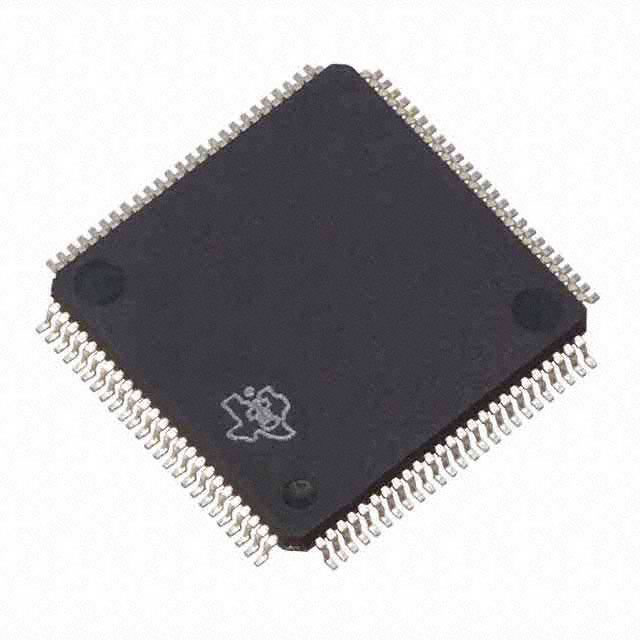

LM3S2016-IQC50-A2-NS

Active

Luminary Micro Division of Texas Instruments

IC MCU 32BIT 64KB FLASH 100LQFP

Search across all available documentation for this part.

Active

Luminary Micro Division of Texas Instruments

IC MCU 32BIT 64KB FLASH 100LQFP

Technical Specifications

Parameters and characteristics for this part

Specification	LM3S2016-IQC50-A2-NS

Connectivity	SPI, SSI, CANbus, UART/USART, IrDA, I2C, Microwire
Core Processor	ARM® Cortex®-M3
Core Size	32-Bit Single-Core
Data Converters [custom]	10
Data Converters [custom]	4
Mounting Type	Surface Mount
Number of I/O	40
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	100-LQFP
Program Memory Size	64 KB
Program Memory Type	FLASH
RAM Size	8 K
Speed	50 MHz
Supplier Device Package	100-LQFP (14x14)
Voltage - Supply (Vcc/Vdd) [Max]	2.75 V
Voltage - Supply (Vcc/Vdd) [Min]	2.25 V

IC MCU 32BIT 64KB FLASH 100LQFP

Part	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Supplier Device Package	Oscillator Type	Program Memory Size	Data Converters [custom]	Data Converters [custom]	RAM Size	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Core Processor	Program Memory Type	Speed	Number of I/O	Package / Case	Connectivity	Core Size
Luminary Micro Division of Texas Instruments LM3S2016-IQC50-A2-NS	2.25 V	2.75 V	100-LQFP (14x14)	Internal	64 KB	10	4	8 K	85 °C	-40 °C	Surface Mount	ARM® Cortex®-M3	FLASH	50 MHz	40	100-LQFP	CANbus, I2C, IrDA, Microwire, SPI, SSI, UART/USART	32-Bit Single-Core

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	55	$ 5.46

General part information

ARM® Cortex®-M3 Stellaris® ARM® Cortex®-M3S 2000 Microcontroller IC 32-Bit Single-Core 50MHz 64KB (64K x 8) FLASH 100-LQFP (14x14)

Technical documentation and resources

No documents available
