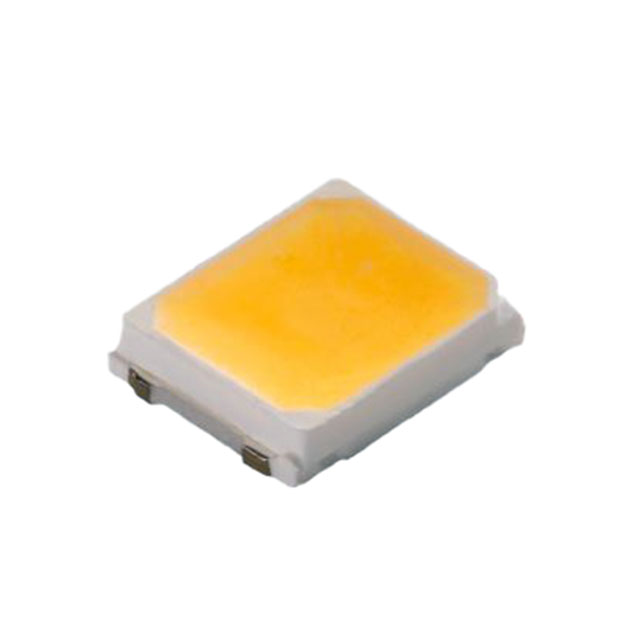

JB2835AWT-W-H35GA0000-N0000001
ActiveCree LED
LED J WARM WHT 3500K 1411
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JB2835AWT-W-H35GA0000-N0000001
ActiveCree LED
LED J WARM WHT 3500K 1411
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JB2835AWT-W-H35GA0000-N0000001 |
|---|---|
| CCT (K) | 3500 K |
| Color | White, Warm |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 150 mA |
| Current - Test | 60 mA |
| Flux @ 25°C, Current - Test | 29 lm |
| Flux @ 85°C, Current - Test | 26 lm |
| Height - Seated (Max) [Max] [z] | 0.8 mm |
| Height - Seated (Max) [Max] [z] | 0.031 " |
| Lumens/Watt @ Current - Test | 166 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 1411 |
| Package / Case | 3528 Metric |
| Size / Dimension [x] | 0.138 " |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 0.11 in |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 1411 |
| Thermal Resistance of Package [custom] | 30 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.91 V |
JB2835AWT Series
| Part | CRI (Color Rendering Index) | Lumens/Watt @ Current - Test | Thermal Resistance of Package [custom] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Mounting Type | Color | Current - Test | Voltage - Forward (Vf) (Typ) | Viewing Angle | Flux @ 25°C, Current - Test | Package / Case | Package / Case | Flux @ 85°C, Current - Test | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | CCT (K) | Supplier Device Package | Current - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cree LED | 80 | 166 lm/W | 30 °C/W | 0.11 in | 2.8 mm | 0.138 " | 3.5 mm | Surface Mount | Warm White | 60 mA | 2.91 V | 120 ° | 29 lm | 1411 | 3528 Metric | 26 lm | 0.8 mm | 0.031 " | 3000 K | 1411 | 150 mA |
Cree LED | 80 | 166 lm/W | 30 °C/W | 0.11 in | 2.8 mm | 0.138 " | 3.5 mm | Surface Mount | Warm White | 60 mA | 2.91 V | 120 ° | 29 lm | 1411 | 3528 Metric | 26 lm | 0.8 mm | 0.031 " | 3000 K | 1411 | 150 mA |
Cree LED | 90 | 149 lm/W | 30 °C/W | 0.11 in | 2.8 mm | 0.138 " | 3.5 mm | Surface Mount | Neutral White | 60 mA | 2.91 V | 120 ° | 26 lm | 1411 | 3528 Metric | 23 lm | 0.8 mm | 0.031 " | 4000 K | 1411 | 150 mA |
Cree LED | 80 | 166 lm/W | 30 °C/W | 0.11 in | 2.8 mm | 0.138 " | 3.5 mm | Surface Mount | Warm White | 60 mA | 2.91 V | 120 ° | 29 lm | 1411 | 3528 Metric | 26 lm | 0.8 mm | 0.031 " | 3500 K | 1411 | 150 mA |
Cree LED | 90 | 137 lm/W | 30 °C/W | 0.11 in | 2.8 mm | 0.138 " | 3.5 mm | Surface Mount | Warm White | 60 mA | 2.91 V | 120 ° | 24 lm | 1411 | 3528 Metric | 22 lm | 0.8 mm | 0.031 " | 3000 K | 1411 | 150 mA |
Cree LED | 90 | 137 lm/W | 30 °C/W | 0.11 in | 2.8 mm | 0.138 " | 3.5 mm | Surface Mount | Warm White | 60 mA | 2.91 V | 120 ° | 24 lm | 1411 | 3528 Metric | 22 lm | 0.8 mm | 0.031 " | 3000 K | 1411 | 150 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.02 | |||
| 100 | $ 0.02 | |||
| 500 | $ 0.02 | |||
| 1000 | $ 0.02 | |||
| Digi-Reel® | 1 | $ 0.10 | ||
| 10 | $ 0.02 | |||
| 100 | $ 0.02 | |||
| 500 | $ 0.02 | |||
| 1000 | $ 0.02 | |||
| Tape & Reel (TR) | 4000 | $ 0.01 | ||
| 8000 | $ 0.01 | |||
Description
General part information
JB2835AWT Series
LED Lighting J White, Warm 3500K 3-Step MacAdam Ellipse 2.91V 60mA 120° 1411 (3528 Metric)
