XLVGMYK58M
ActiveSunLED

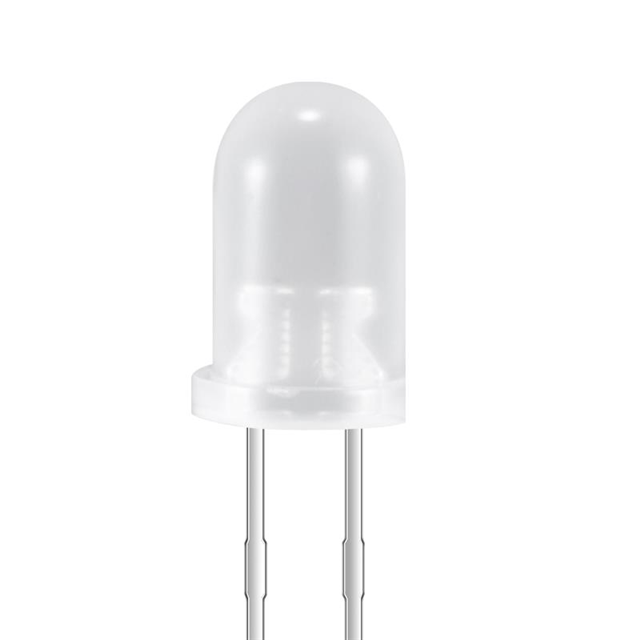

LED GRN/YLW DIFFUSED T-1 3/4 T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XLVGMYK58M
ActiveSunLED
LED GRN/YLW DIFFUSED T-1 3/4 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XLVGMYK58M |
|---|---|
| Color | Green, Yellow |
| Configuration | Bidirectional |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 9.85 mm |
| Lens Color | White |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 118 mcd, 178 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | T-1 3/4 (5mm) |
| Viewing Angle | 30 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V, 2 V |
| Wavelength - Dominant | 570 nm, 590 nm |
| Wavelength - Peak | 590 nm, 574 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.54 | |
| 10 | $ 0.35 | |||
| 100 | $ 0.23 | |||
| 1000 | $ 0.18 | |||
| 2000 | $ 0.16 | |||
| 5000 | $ 0.15 | |||
| 10000 | $ 0.15 | |||
| 25000 | $ 0.15 | |||
Description
General part information
XLVGMYK58 Series
Green, Yellow 570nm Green, 590nm Yellow LED Indication - Discrete 2.1V Green, 2V Yellow Radial
