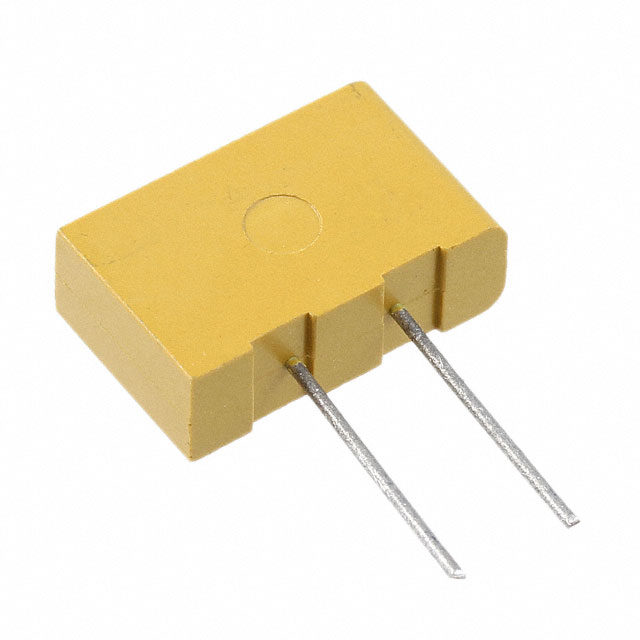

T330D476K025AS

Active

KEMET

CAP TANT SOLID 47UF 25V 10%( 15.24 X 4.95 X 9.53MM) RADIAL 5.08MM 125°C BAG

Search across all available documentation for this part.

Active

KEMET

CAP TANT SOLID 47UF 25V 10%( 15.24 X 4.95 X 9.53MM) RADIAL 5.08MM 125°C BAG

Technical Specifications

Parameters and characteristics for this part

Specification	T330D476K025AS

Capacitance	47 µF
ESR (Equivalent Series Resistance)	1200 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	9.91 mm
Height - Seated (Max) [Max]	0.39 "
Lead Spacing	5.08 mm
Lead Spacing	0.2 in
Manufacturer Size Code	D
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	0.6 in
Size / Dimension [x]	15.24 mm
Size / Dimension [y]	0.195 in
Size / Dimension [y]	4.95 mm
Tolerance	10 %
Type	Molded
Voltage - Rated	25 VDC

Part	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Tolerance	Package / Case	Voltage - Rated	Lead Spacing	Lead Spacing	Type	ESR (Equivalent Series Resistance)	Manufacturer Size Code	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Type
KEMET T330D476K025AS	47 µF	9.91 mm	0.39 "	0.6 in	15.24 mm	0.195 in	4.95 mm	10 %	Radial	25 VDC	5.08 mm	0.2 in	Molded	1200 mOhm	D	-55 °C	125 °C	General Purpose	Through Hole
