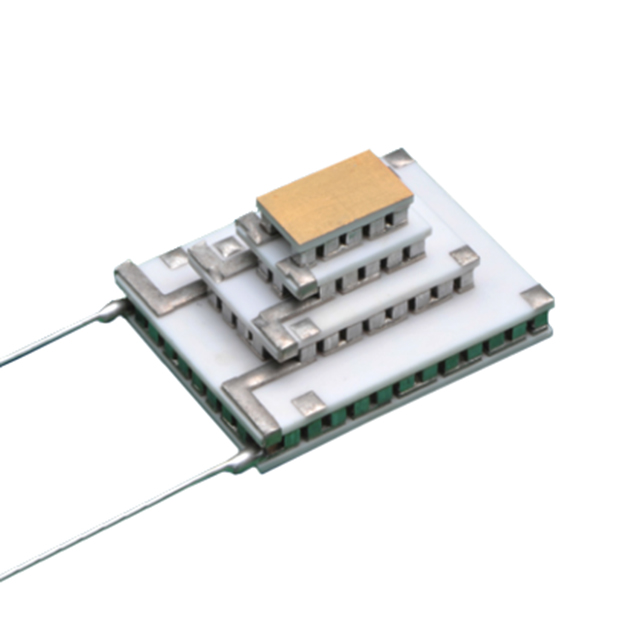

NL4040-04BC

Active

Marlow Industries, Inc.

MULTISTAGE TEM21.72X28.27X14.1MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

MULTISTAGE TEM21.72X28.27X14.1MM

Technical Specifications

Parameters and characteristics for this part

Specification	NL4040-04BC

Current - Max [Max]	4 A
Delta Tmax @ Th	120 °C, 27 °C
Features	Exterior Metallization (Both Sides), Lead Wires
Height [z]	14.1 mm
Number of Stages	4
Qmax @ Th	2.7 W
Size / Dimension [x]	28.27 mm
Size / Dimension [y]	21.72 mm
Voltage - Max	6.8 V

MULTISTAGE TEM21.72X28.27X14.1MM

Part	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Number of Stages	Current - Max [Max]	Qmax @ Th	Delta Tmax @ Th	Features	Voltage - Max
Marlow Industries, Inc. NL4040-04BC	28.27 mm	21.72 mm	14.1 mm	4	4 A	2.7 W	27 °C, 120 °C	Exterior Metallization (Both Sides), Lead Wires	6.8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 472.15

General part information

Peltier Module 2.7W @ 27°C 4 A 85°C

Technical documentation and resources

No documents available
