012520CD075
ActiveEssentra Components

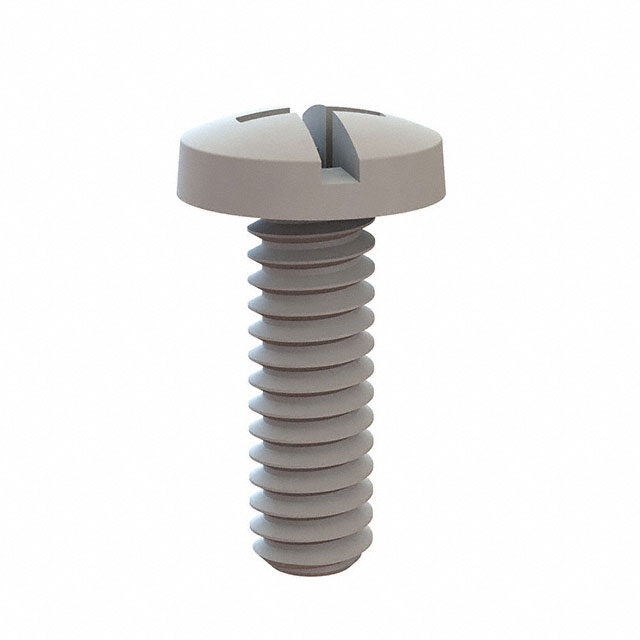

BINDER COMBINATION SCREW 1/4-20
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
012520CD075
ActiveEssentra Components
BINDER COMBINATION SCREW 1/4-20
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 012520CD075 | 012520CD Series |
|---|---|---|
| Drive Type | Combination | Combination |
| Head Diameter | - | 12.99 mm |
| Head Diameter | - | 0.511 in |
| Head Height | - | 0.317 in |
| Head Height | - | 8.05 mm |
| Length - Below Head | 0.75 " | 0.25 - 9.53 in |
| Length - Below Head | 19.05 mm | 0.375 - 38.1 mm |
| Length - Below Head | 0.75 " | 0.25 - 0.75 in |
| Length - Below Head | - | 31.75 - 50.8 mm |
| Length - Below Head | - | 1.25 - 2 in |
| Length - Below Head | - | 1/2 |
| Length - Below Head | - | 7.94 mm |
| Length - Below Head | - | 0.313 in |
| Length - Overall | - | 20.75 mm |
| Length - Overall [x] | 27.1 mm | 14.4 - 58.85 mm |
| Length - Overall [x] | 1.067 in | 0.567 - 2.317 in |
| Material | Nylon | Nylon |
| Screw Head Type | Binding Head | Binding Head |
| Thread Size | 1/4"-20 | 1/4"-20 |
| Type | Machine Screw | Machine Screw |
012520CD Series
MACH SCREW BINDING COMBO 1/4"-20
| Part | Material | Length - Overall [x] | Length - Overall [x] | Type | Length - Below Head | Length - Below Head | Length - Below Head | Drive Type | Screw Head Type | Head Height | Head Height | Head Diameter [diameter] | Head Diameter [diameter] | Thread Size | Length - Below Head [x] | Length - Below Head [x] | Length - Below Head | Length - Overall | Length - Below Head [custom] | Length - Below Head [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Essentra Components 012520CD025 | Nylon | 14.4 mm | 0.567 in | Machine Screw | 6.35 mm | 0.25 in | 0.25 in | Combination | Binding Head | 0.317 in | 8.05 mm | 12.99 mm | 0.511 in | 1/4"-20 | ||||||
Essentra Components 012520CD200 | Nylon | 58.85 mm | 2.317 " | Machine Screw | Combination | Binding Head | 0.317 in | 8.05 mm | 12.99 mm | 0.511 in | 1/4"-20 | 50.8 mm | 2 in | |||||||
Essentra Components 012520CD050 | Nylon | 0.817 in | Machine Screw | 12.7 mm | 0.5 in | Combination | Binding Head | 0.317 in | 8.05 mm | 12.99 mm | 0.511 in | 1/4"-20 | 1/2 | 20.75 mm | ||||||
Essentra Components 012520CD037 | Nylon | 17.58 mm | 0.692 in | Machine Screw | 0.375 " | 0.375 " | 9.53 mm | Combination | Binding Head | 0.317 in | 8.05 mm | 12.99 mm | 0.511 in | 1/4"-20 | ||||||
Essentra Components 012520CD150 | Nylon | 46.15 mm | 1.817 in | Machine Screw | 38.1 mm | Combination | Binding Head | 0.317 in | 8.05 mm | 12.99 mm | 0.511 in | 1/4"-20 | 1.5 in | |||||||
Essentra Components 012520CD075 | Nylon | 27.1 mm | 1.067 in | Machine Screw | 19.05 mm | 0.75 " | 0.75 " | Combination | Binding Head | 1/4"-20 | ||||||||||
Essentra Components 012520CD031 | Nylon | 15.99 mm | 0.63 " | Machine Screw | Combination | Binding Head | 0.317 in | 8.05 mm | 12.99 mm | 0.511 in | 1/4"-20 | 7.94 mm | 0.313 in | |||||||
Essentra Components 012520CD125 | Nylon | 39.8 mm | 1.567 in | Machine Screw | Combination | Binding Head | 0.317 in | 8.05 mm | 12.99 mm | 0.511 in | 1/4"-20 | 31.75 mm | 1.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.10 | |
| 5 | $ 0.07 | |||
| 10 | $ 0.06 | |||
| 25 | $ 0.05 | |||
| 50 | $ 0.05 | |||
| 100 | $ 0.05 | |||
| 250 | $ 0.04 | |||
| 500 | $ 0.04 | |||
| 1000 | $ 0.04 | |||
Description
General part information
012520CD Series
1/4"-20 Binding Head Machine Screw Combination Drive Nylon
