012520CD031

Active

Essentra Components

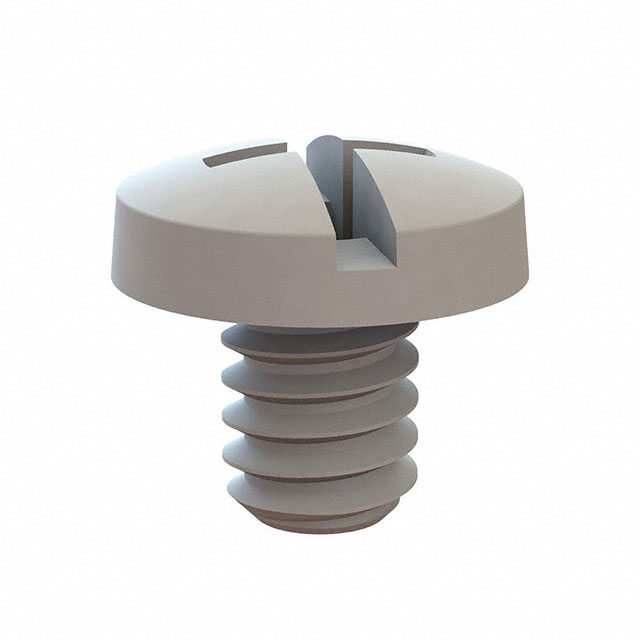

BINDER COMBINATION SCREW 1/4-20

Search across all available documentation for this part.

Active

Essentra Components

BINDER COMBINATION SCREW 1/4-20

Technical Specifications

Parameters and characteristics commom to parts in this series

MACH SCREW BINDING COMBO 1/4"-20

Part	Material	Length - Overall [x]	Length - Overall [x]	Type	Length - Below Head	Length - Below Head	Length - Below Head	Drive Type	Screw Head Type	Head Height	Head Height	Head Diameter [diameter]	Head Diameter [diameter]	Thread Size	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head	Length - Overall	Length - Below Head [custom]	Length - Below Head [custom]
Essentra Components 012520CD025	Nylon	14.4 mm	0.567 in	Machine Screw	6.35 mm	0.25 in	0.25 in	Combination	Binding Head	0.317 in	8.05 mm	12.99 mm	0.511 in	1/4"-20
Essentra Components 012520CD200	Nylon	58.85 mm	2.317 "	Machine Screw				Combination	Binding Head	0.317 in	8.05 mm	12.99 mm	0.511 in	1/4"-20	50.8 mm	2 in
Essentra Components 012520CD050	Nylon		0.817 in	Machine Screw	12.7 mm	0.5 in		Combination	Binding Head	0.317 in	8.05 mm	12.99 mm	0.511 in	1/4"-20			1/2	20.75 mm
Essentra Components 012520CD037	Nylon	17.58 mm	0.692 in	Machine Screw	0.375 "	0.375 "	9.53 mm	Combination	Binding Head	0.317 in	8.05 mm	12.99 mm	0.511 in	1/4"-20
Essentra Components 012520CD150	Nylon	46.15 mm	1.817 in	Machine Screw	38.1 mm			Combination	Binding Head	0.317 in	8.05 mm	12.99 mm	0.511 in	1/4"-20		1.5 in
Essentra Components 012520CD075	Nylon	27.1 mm	1.067 in	Machine Screw	19.05 mm	0.75 "	0.75 "	Combination	Binding Head					1/4"-20
Essentra Components 012520CD031	Nylon	15.99 mm	0.63 "	Machine Screw				Combination	Binding Head	0.317 in	8.05 mm	12.99 mm	0.511 in	1/4"-20					7.94 mm	0.313 in
Essentra Components 012520CD125	Nylon	39.8 mm	1.567 in	Machine Screw				Combination	Binding Head	0.317 in	8.05 mm	12.99 mm	0.511 in	1/4"-20	31.75 mm	1.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.07

General part information

1/4"-20 Binding Head Machine Screw Combination Drive Nylon

Technical documentation and resources

No documents available
