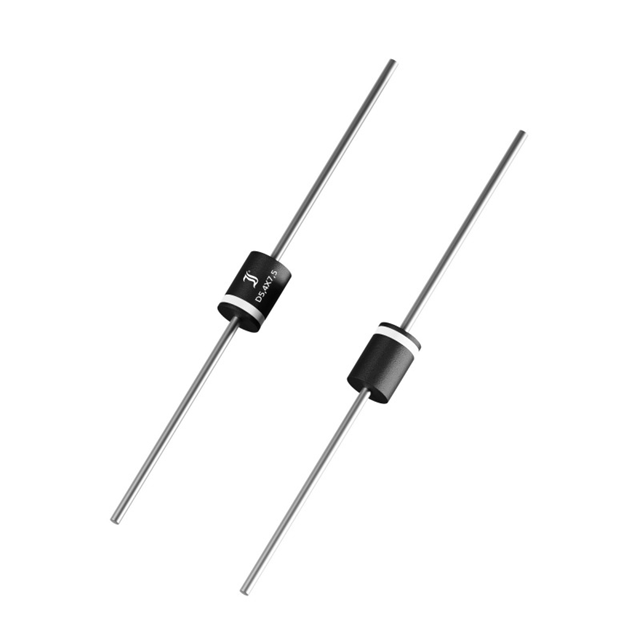

1.5KE170A

Active

Diotec Semiconductor

TVS DIODE 145VWM 234V AXIAL

Search across all available documentation for this part.

Active

Diotec Semiconductor

TVS DIODE 145VWM 234V AXIAL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.5KE170A	1.5KE Series

Applications	General Purpose	General Purpose
Bidirectional Channels	-	1
Current - Peak Pulse (10/1000µs)	6.7 A	6.7 - 139 A
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	175 ░C	175 ░C
Operating Temperature [Min]	-50 °C	-50 °C
Package / Case	Axial	Axial
Power - Peak Pulse	1.5 kW	1.5 kW
Power - Peak Pulse	1500 W	1500 W
Power Line Protection	False	False
Supplier Device Package	Axial	Axial
Type	Zener	Zener
Unidirectional Channels [custom]	1	1
Voltage - Breakdown (Min) [Min]	162 V	7.13 - 162 V
Voltage - Clamping (Max) @ Ipp [Max]	234 V	11.3 - 234 V
Voltage - Reverse Standoff (Typ)	145 V	6.4 - 145 V

TVS DIODE 6.4VWM 11.3V AXIAL

Part	Mounting Type	Power - Peak Pulse	Power - Peak Pulse	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Breakdown (Min) [Min]	Power Line Protection	Voltage - Reverse Standoff (Typ)	Supplier Device Package	Current - Peak Pulse (10/1000µs)	Package / Case	Applications	Bidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]	Unidirectional Channels [custom]
Diotec Semiconductor 1.5KE7.5CA	Through Hole	1.5 kW	1500 W	Zener	-50 °C	175 ░C	7.13 V		6.4 V	Axial	139 A	Axial	General Purpose	1	11.3 V
Diotec Semiconductor 1.5KE170A	Through Hole	1.5 kW	1500 W	Zener	-50 °C	175 ░C	162 V		145 V	Axial	6.7 A	Axial	General Purpose		234 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

234V Clamp 6.7A Ipp Tvs Diode Through Hole Axial
