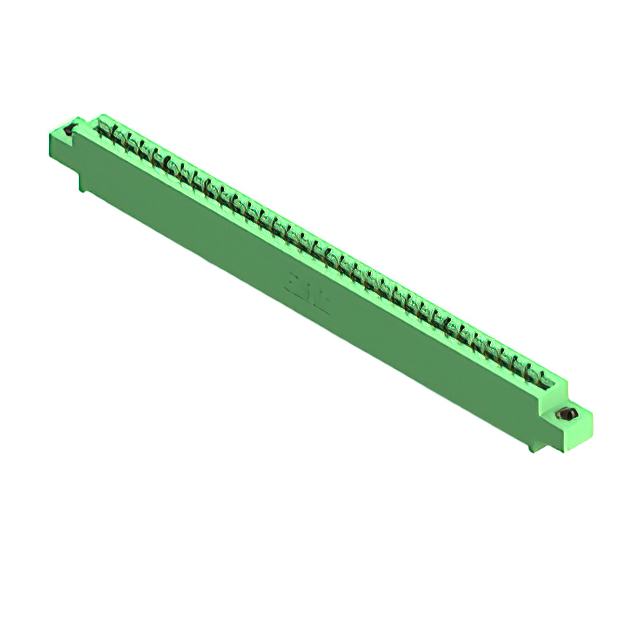

Connectors, Interconnects

837-033-544-607

Active

EDAC Inc.

837 HIGH TEMP' SERIES (.156" (3.

Connectors, Interconnects

837-033-544-607

Active

EDAC Inc.

837 HIGH TEMP' SERIES (.156" (3.

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	837-033-544-607

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Threaded Insert, M3
Gender	Female
Material - Insulation	Diallyl Phthalate, DAP
Mounting Type	Through Hole
Number of Positions	33
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Single
Termination	Wire Wrap
Termination Rows	1 rows

837-033 Series

...

Part	Card Type	Contact Type	Operating Temperature (Max)	Operating Temperature (Min)	Read Out	Color	Mounting Type	Gender	Contact Material	Number of Rows	Termination	Flange Feature	Number of Positions	Pitch	Contact Finish Thickness	Card Thickness (Min)	Card Thickness (Max)	Contact Finish	Material - Insulation	Termination Rows	Flange Feature Diameter
EDAC Inc. 837-033-524-108	Non Specified Single Edge	Cantilever	125 °C	-40 °C	Single	Green	Through Hole	Female	Copper Alloy	1	Solder	4-40 Flush Mount Threaded Insert Top Opening	33	0.156 in	10 Ąin	0.054 in	0.07 in	Gold	DAP Diallyl Phthalate	1 rows
EDAC Inc. 837-033-558-101	Non Specified Single Edge	Cantilever	125 °C	-40 °C	Single	Green	Right Angle Through Hole	Female	Copper Alloy	1	Solder		33	0.156 in	10 Ąin	0.054 in	0.07 in	Gold	DAP Diallyl Phthalate	1 rows
EDAC Inc. 837-033-544-607	Non Specified Single Edge	Cantilever	125 °C	-40 °C	Single	Green	Through Hole	Female	Copper Alloy	1	Wire Wrap	M3 Threaded Insert Top Mount Opening	33	0.156 in	10 Ąin	0.054 in	0.07 in	Gold	DAP Diallyl Phthalate	1 rows
EDAC Inc. 837-033-559-112	Non Specified Single Edge	Cantilever	125 °C	-40 °C	Single	Green	Right Angle Through Hole	Female	Copper Alloy	1	Solder	Flush Mount Side Opening Unthreaded	33	0.156 in	10 Ąin	0.054 in	0.07 in	Gold	DAP Diallyl Phthalate	1 rows	0.128 in
EDAC Inc. 837-033-523-101	Non Specified Single Edge	Cantilever	125 °C	-40 °C	Single	Green	Through Hole	Female	Copper Alloy	1	Solder		33	0.156 in	10 Ąin	0.054 in	0.07 in	Gold	DAP Diallyl Phthalate	1 rows
EDAC Inc. 837-033-500-603	Non Specified Single Edge	Cantilever	125 °C	-40 °C	Single	Green	Through Hole	Female	Copper Alloy	1	Solder Eyelet(s)	Floating Bobbin Top Mount Opening	33	0.156 in	10 Ąin	0.054 in	0.07 in	Gold	DAP Diallyl Phthalate	1 rows	0.116 in
EDAC Inc. 837-033-542-603	Non Specified Single Edge	Cantilever	125 °C	-40 °C	Single	Green	Through Hole	Female	Copper Alloy	1	Wire Wrap	Floating Bobbin Top Mount Opening	33	0.156 in	10 Ąin	0.054 in	0.07 in	Gold	DAP Diallyl Phthalate	1 rows	0.116 in
EDAC Inc. 837-033-541-607	Non Specified Single Edge	Cantilever	125 °C	-40 °C	Single	Green	Through Hole	Female	Copper Alloy	1	Wire Wrap	M3 Threaded Insert Top Mount Opening	33	0.156 in	10 Ąin	0.054 in	0.07 in	Gold	DAP Diallyl Phthalate	1 rows
EDAC Inc. 837-033-559-104	Non Specified Single Edge	Cantilever	125 °C	-40 °C	Single	Green	Right Angle Through Hole	Female	Copper Alloy	1	Solder	Flush Mount Top Opening Unthreaded	33	0.156 in	10 Ąin	0.054 in	0.07 in	Gold	DAP Diallyl Phthalate	1 rows	0.156 in
EDAC Inc. 837-033-521-101	Non Specified Single Edge	Cantilever	125 °C	-40 °C	Single	Green	Through Hole	Female	Copper Alloy	1	Solder		33	0.156 in	10 Ąin	0.054 in	0.07 in	Gold	DAP Diallyl Phthalate	1 rows
