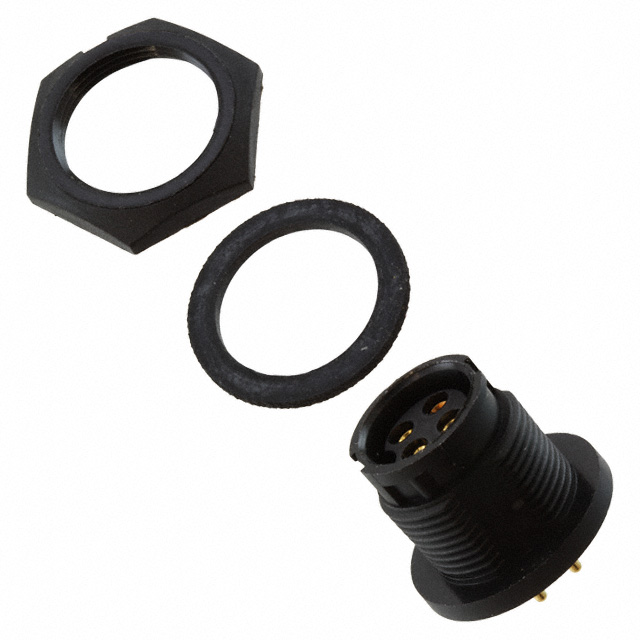

7381-4SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 4POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 4POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	7381-4SG-300	7381-4SG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	Weathertight	Weathertight
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	4	4
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Solder	Solder
Voltage Rating	600 V	600 V

CONN RCPT FMALE 4POS GOLD SOLDER

Part	Applications	Voltage Rating	Contact Finish - Mating	Backshell Material, Plating	Color	Mounting Feature	Termination	Primary Material	Shielding	Mounting Type	Ingress Protection	Contact Material	Number of Positions	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Fastening Type	Current Rating (Amps)
Conxall/Switchcraft 7381-4SG-300	Automotive, Communication Systems, Instrumentation	600 V	Gold	Nylon, Polyamide (PA)	Black	Bulkhead - Front Side Nut	Solder	Plastic	Unshielded	Panel Mount, Through Hole	Weathertight	Brass	4	Receptacle, Female Sockets	-40 °C	115 °C	Keyed	Bayonet Lock	Varies by Wire Gauge
Conxall/Switchcraft 7381-4SG-3ES	Automotive, Communication Systems, Instrumentation	600 V	Gold	Nylon, Polyamide (PA)	Black	Bulkhead - Front Side Nut	Solder	Plastic	Unshielded	Panel Mount, Through Hole	Weathertight	Brass	4	Receptacle, Female Sockets	-40 °C	115 °C	Keyed	Bayonet Lock	Varies by Wire Gauge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder
