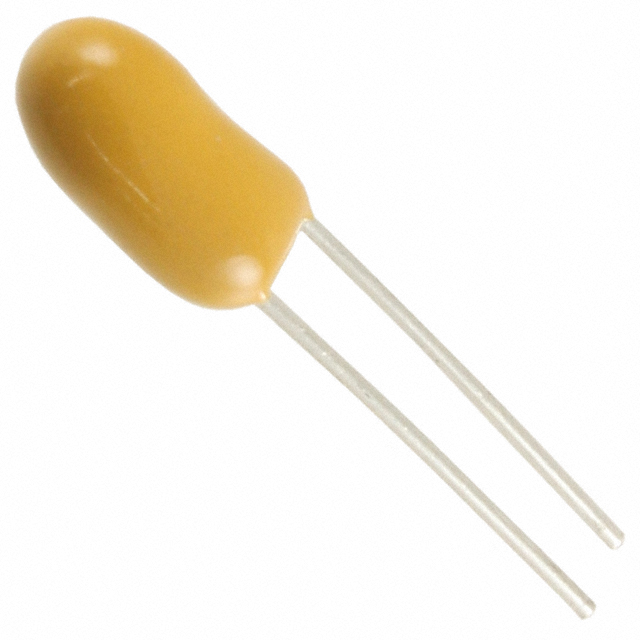

T350G106K035AT

Active

KEMET

CAP 10UF 35VDC 10% 6.3 X 10.2MM RDL 2.54MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

CAP 10UF 35VDC 10% 6.3 X 10.2MM RDL 2.54MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	T350G106K035AT

Capacitance	10 µF
ESR (Equivalent Series Resistance)	2 Ohms
Features	General Purpose
Height - Seated (Max) [Max] [z]	10.2 mm
Height - Seated (Max) [Max] [z]	0.402 "
Lead Spacing	0.1 in
Lead Spacing	2.54 mm
Manufacturer Size Code	G
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.248 in
Size / Dimension [diameter]	6.3 mm
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	35 V

Part	Type	Features	Package / Case	Lead Spacing	Lead Spacing	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	ESR (Equivalent Series Resistance)	Capacitance	Manufacturer Size Code	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type
KEMET T350G106K035AS	Conformal Coated	General Purpose	Radial	0.1 in	2.54 mm	10 %	0.248 in	6.3 mm	-55 °C	125 °C	35 V	2 Ohms	10 µF	G	10.2 mm	0.402 "	Through Hole
KEMET T350G106K035AT7301	Conformal Coated	General Purpose	Radial	0.1 in	2.54 mm	10 %	0.248 in	6.3 mm	-55 °C	125 °C	35 V	2 Ohms	10 µF	G	10.2 mm	0.402 "	Through Hole
KEMET T350G475K050AS7301	Conformal Coated	General Purpose	Radial	0.1 in	2.54 mm	10 %	0.248 in	6.3 mm	-55 °C	125 °C	50 VDC	2.5 Ohm	4.7 µF	G	10.2 mm	0.402 "	Through Hole
KEMET T350G156K025AS	Conformal Coated	General Purpose	Radial	0.1 in	2.54 mm	10 %	0.248 in	6.3 mm	-55 °C	125 °C	25 VDC	2 Ohms	15 µF	G	10.2 mm	0.402 "	Through Hole
KEMET T350G106M035AS7301	Conformal Coated	General Purpose	Radial	0.1 in	2.54 mm	20 %	0.248 in	6.3 mm	-55 °C	125 °C	35 V	2 Ohm	10 µF	G	10.2 mm	0.402 "	Through Hole
KEMET T350G156K025AT	Conformal Coated	General Purpose	Radial	0.1 in	2.54 mm	10 %	0.248 in	6.3 mm	-55 °C	125 °C	25 VDC	2 Ohms	15 µF	G	10.2 mm	0.402 "	Through Hole
KEMET T350G106K035AT	Conformal Coated	General Purpose	Radial	0.1 in	2.54 mm	10 %	0.248 in	6.3 mm	-55 °C	125 °C	35 V	2 Ohms	10 µF	G	10.2 mm	0.402 "	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 µF Conformal Coated Tantalum Capacitors 35 V Radial 2Ohm
