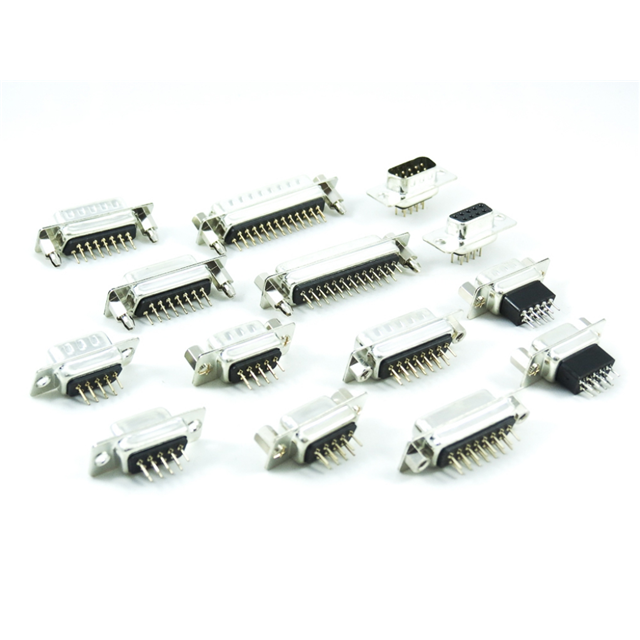

Specification	7905-37FTBG00N2N7A

Color	Black
Connector Layout	DC, C
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating	1 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Finish	Tin Plated
Flange Feature	Board Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	37 pos
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Primary Material	Metal
Shell Material	Steel
Shell Size	4
Termination	Solder

7905-37 Series

Part	Termination	Material Flammability Rating	Current Rating	Contact Finish	Features	Connector Type	Connector Style	Number of Positions	Finish	Shell Material	Contact Finish Thickness (string set options)	Contact Finish Thickness	Flange Feature	Shell Size	Connector Layout	Mounting Type	Contact Type	Number of Rows	Color	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Contact Material	Primary Material
Oupiin 7905-37MTBG00N3N6A	Solder	UL94 V-0	1 A	Gold	Board Lock Grounding Indents	Male Pins Plug	D-Sub	37 pos	Tin Plated	Steel	Flash	Flash	Board Side (4-40) Female Screwlock (4-40) Mating Side	4	C DC	Through Hole	Signal	2	Black	-55 °C	105 °C	Polybutylene Terephthalate (PBT)	Brass
Oupiin 7905-37FTBG00N2N7A	Solder	UL94 V-0	1 A	Gold		Female Sockets Receptacle	D-Sub	37 pos	Tin Plated	Steel	Flash	Flash	Board Side (4-40)	4	C DC	Through Hole	Signal	2	Black	-55 °C	105 °C	Polybutylene Terephthalate (PBT)	Brass	Metal
Oupiin 7905-37FTBG00N3N6A	Solder	UL94 V-0	1 A	Gold	Board Lock	Female Sockets Receptacle	D-Sub	37 pos	Tin Plated	Steel	Flash	Flash	Board Side (4-40) Female Screwlock (4-40) Mating Side	4	C DC	Through Hole	Signal	2	Black	-55 °C	105 °C	Polybutylene Terephthalate (PBT)	Brass
