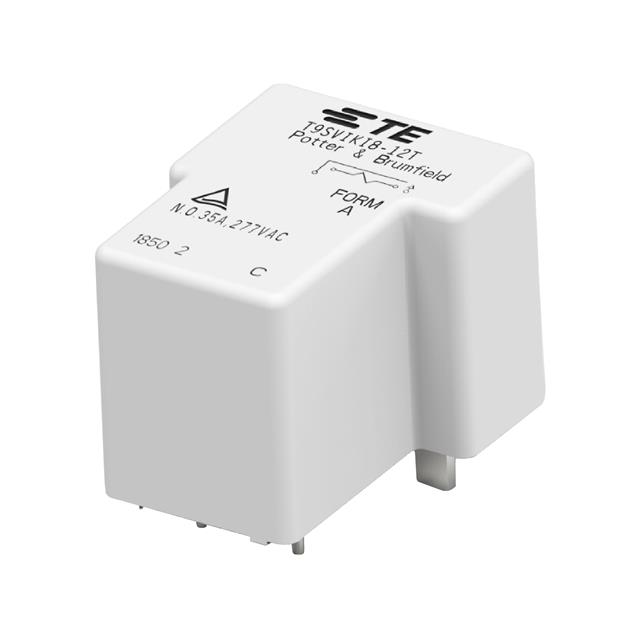

2027395-7
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 35A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2027395-7
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 35A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2027395-7 |
|---|---|
| Approval Agency | VDE, UR |
| Coil Current | 188 mA |
| Coil Insulation | Class F |
| Coil Resistance | 64 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver (Ag) |
| Contact Rating (Current) | 35 A |
| Load - Max Switching | 9695 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | 0.8 VDC |
| Operate Time | 18 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 15 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage [Max] | 277 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.54 | |
| 10 | $ 7.46 | |||
| 25 | $ 7.07 | |||
| 50 | $ 6.79 | |||
| 100 | $ 6.52 | |||
| 250 | $ 6.18 | |||
| 450 | $ 5.97 | |||
| 950 | $ 5.71 | |||
Description
General part information
2027395 Series
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
