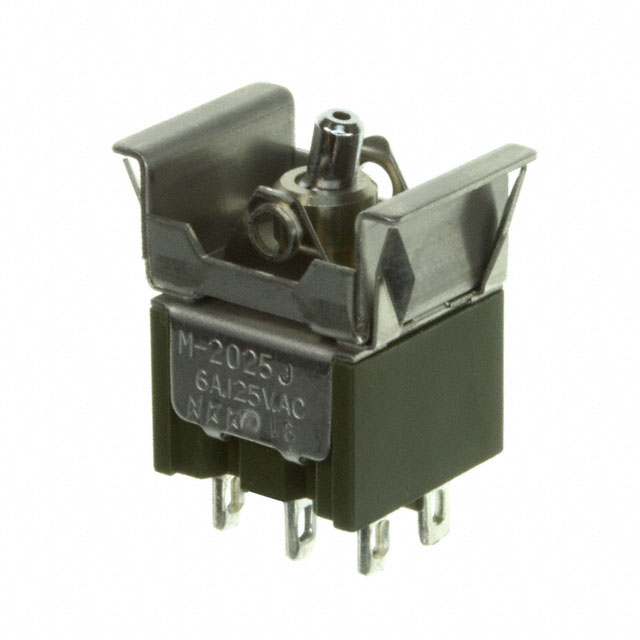

M2025TJW01-FC

Obsolete

NKK Switches

SWITCH ROCKER DPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROCKER DPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Current Rating (Amps)	Electrical Life	Voltage Rating - DC	Voltage Rating - AC	Approval Agency	Switch Function	Termination Style	Mounting Type	Actuator Type	Features	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Illumination Type, Color	Illumination Voltage (Nominal)
NKK Switches M2025TJW01-FC	DPDT	3 A 6 A	25000 Steps	30 V	125 V	CSA UL	On-Mom	Solder Lug	Panel Mount Snap-In	Concave (Standard V)	Epoxy Sealed Terminals	No Marking	-30 ░C	85 °C	Red	13.1 mm	15.9 mm
NKK Switches M2025TJW01-FA-4A-FC	DPDT	3 A 6 A	25000 Steps	30 V	125 V	CSA UL	On-Mom	Solder Lug	Panel Mount Snap-In	Concave (Standard V) - Illuminated	Epoxy Sealed Terminals	No Marking	-30 ░C	85 °C	Black	15.9 mm	18.7 mm	Green/Red LED	1.9 VDC 2.1 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch DPDT 6A (AC), 3A (DC) 125 V Panel Mount, Snap-In
