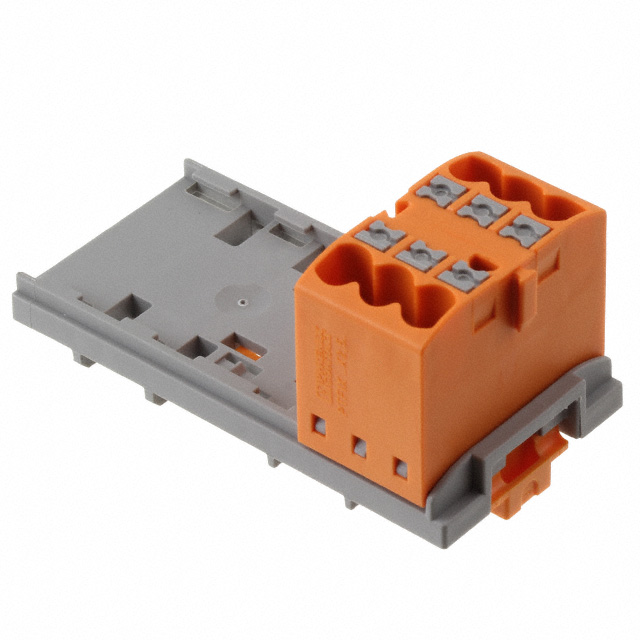

DIN RAIL TERMINAL BLOCKS PTFIX 6X2,5-NS35 OG 2.5MM2 NS35 DIN TRNS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

3273018

Active

Phoenix Contact

DIN RAIL TERMINAL BLOCKS PTFIX 6X2,5-NS35 OG 2.5MM2 NS35 DIN TRNS

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3273018	PTFIX Series

Current - IEC	24 A	17.5 - 32 A
Current - UL	5 A	5 - 32 A
Features	Block of 3	Block of 3, Block of 9, Block of 6
Height (Max)	-	1.079 in
Height (Max)	-	18.7 - 33 mm
Height (Max) [Max]	1.559 in	0.736 - 1.559 in
Height (Max) [Max]	39.6 mm	30.9 - 39.6 mm
Housing Color	Orange	Orange, Red, Violet, Black, White, Pink, Green
Length	2.287 in	1.126 - 2.287 in
Length	58.1 mm	28.6 - 58.1 mm
Length	-	0.85 - 1.799 in
Length	-	21.6 - 45.7 mm
Material - Insulation	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	DIN Rail	DIN Rail, Direct Mount
Number of Levels	1	1
Number of Positions	6	6 - 18
Operating Temperature	-	130 °C
Operating Temperature	-	-60 °C
Stripping Length	10 mm	10 mm
Stripping Length	-	10 mm
Stripping Length	-	12 mm
Stripping Length	-	12 mm
Terminal - Width	-	12.5 - 36.9 mm
Terminal - Width [y]	28.6 mm	15.6 - 55.4 mm
Termination Style	Push In, Spring	Push In, Spring
Type	Middle	Middle
Voltage - IEC	500 V	450 - 800 V
Voltage - UL	-	300 V
Wire Gauge or Range - AWG [Max]	26 AWG	24 - 26 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	10 - 14 AWG
Wire Gauge or Range - mm² [Max]	4 mm²	1.5 - 6 mm²
Wire Gauge or Range - mm² [Min]	0.14 mm²	0.14 - 0.2 mm²

PTFIX Series

DIN Rail Terminal Blocks PTFIX 18X1,5-NS15AVT 1.5 mm2 DIN RAIL MN

Part	Type	Number of Positions	Termination Style	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Terminal - Width [y]	Current - UL	Voltage - IEC	Number of Levels	Height (Max) [Max]	Height (Max) [Max]	Material - Insulation	Material Flammability Rating	Stripping Length	Features	Housing Color	Mounting Type	Length	Length	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Current - IEC	Stripping Length [Min]	Stripping Length [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Voltage - UL	Height (Max) [Max] [z]	Height (Max)	Terminal - Width
Phoenix Contact 3273018	Middle	6	Push In, Spring	0.14 mm²	4 mm²	28.6 mm	5 A	500 V	1	1.559 in	39.6 mm	Nylon, Polyamide (PA)	UL94 V-0	10 mm	Block of 3	Orange	DIN Rail	2.287 in	58.1 mm	12 AWG	26 AWG	24 A
Phoenix Contact 3273970	Middle	18	Push In, Spring	0.2 mm²	6 mm²	55.4 mm	32 A	450 V	1			Nylon, Polyamide (PA)	UL94 V-0		Block of 9	Red	Direct Mount	1.126 in	28.6 mm	10 AWG	24 AWG	32 A	10 mm	12 mm	130 °C	-60 °C
Phoenix Contact 3002975	Middle	18	Push In, Spring	0.14 mm²	1.5 mm²	37.4 mm		450 V	1			Nylon, Polyamide (PA)	UL94 V-0	10 mm	Block of 3	Violet	DIN Rail			14 AWG	26 AWG	17.5 A			130 °C	-60 °C	0.85 in	21.6 mm	300 V	1.079 in	27.4 mm
Phoenix Contact 3273672	Middle	6	Push In, Spring	0.2 mm²	6 mm²	18.5 mm	32 A	800 V	1	1.217 in	30.9 mm	Nylon, Polyamide (PA)	UL94 V-0		Block of 3	Black	DIN Rail			10 AWG	24 AWG	32 A	10 mm	12 mm	130 °C	-60 °C	1.799 "	45.7 mm
Phoenix Contact 3002941	Middle	12	Push In, Spring	0.14 mm²	1.5 mm²	24.9 mm		450 V	1			Nylon, Polyamide (PA)	UL94 V-0	10 mm	Block of 6	White	DIN Rail			14 AWG	26 AWG	17.5 A			130 °C	-60 °C	0.85 in	21.6 mm	300 V	1.079 in	27.4 mm
Phoenix Contact 3273697	Middle	12	Push In, Spring	0.2 mm²	6 mm²		32 A	800 V	1	1.217 in	30.9 mm	Nylon, Polyamide (PA)	UL94 V-0		Block of 6	Pink	DIN Rail			10 AWG	24 AWG	32 A	10 mm	12 mm	130 °C	-60 °C	1.799 "	45.7 mm				36.9 mm
Phoenix Contact 3002904	Middle	12	Push In, Spring	0.14 mm²	1.5 mm²	24.9 mm		450 V	1	0.736 in		Nylon, Polyamide (PA)	UL94 V-0	10 mm	Block of 6	Orange	Direct Mount			14 AWG	26 AWG	17.5 A			130 °C	-60 °C	0.85 in	21.6 mm	300 V		18.7 mm
Phoenix Contact 3274108	Middle	6	Push In, Spring	0.14 mm²	4 mm²	15.6 mm		500 V	1	1.299 in		Nylon, Polyamide (PA)	UL94 V-0	10 mm	Block of 3	Green	DIN Rail			14 AWG	26 AWG	24 A					1.11 in	28.19 mm			33 mm
Phoenix Contact 3002900	Middle	6	Push In, Spring	0.14 mm²	1.5 mm²			450 V	1	0.736 in		Nylon, Polyamide (PA)	UL94 V-0	10 mm	Block of 3	Pink	Direct Mount			14 AWG	26 AWG	17.5 A			130 °C	-60 °C	0.85 in	21.6 mm	300 V		18.7 mm	12.5 mm
Phoenix Contact 3002878	Middle	12	Push In, Spring	0.14 mm²	1.5 mm²	24.9 mm		450 V	1	0.736 in		Nylon, Polyamide (PA)	UL94 V-0	10 mm	Block of 6	Red	Direct Mount			14 AWG	26 AWG	17.5 A			130 °C	-60 °C	0.85 in	21.6 mm	300 V		18.7 mm
