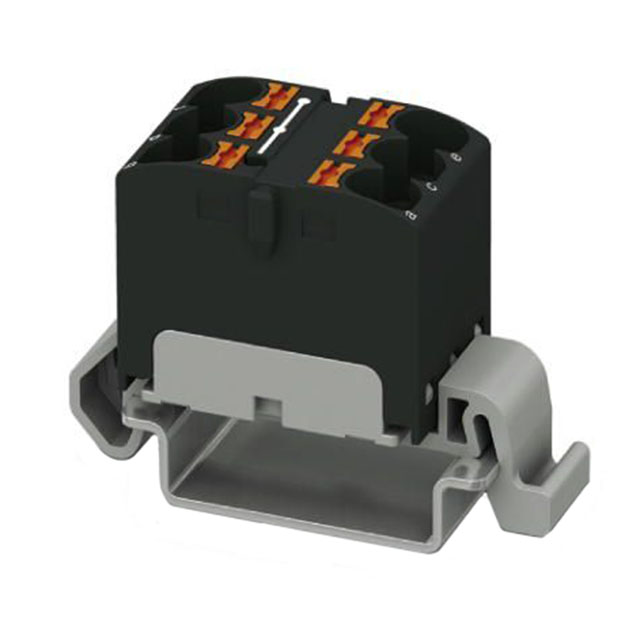

DIN RAIL TERMINAL BLOCKS PTFIX 6X4-NS35A BK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

3273672

Active

Phoenix Contact

DIN RAIL TERMINAL BLOCKS PTFIX 6X4-NS35A BK

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.77
		10	$ 3.52
		50	$ 3.24
		100	$ 2.99
		250	$ 2.85
		500	$ 2.69
Sager	N/A	1	$ 3.58
		10	$ 3.44
		25	$ 3.31
		50	$ 3.07

Description

General part information

PTFIX Series

DIN Rail Terminal Blocks PTFIX 18X1,5-NS15AVT 1.5 mm2 DIN RAIL MN

Documents

Technical documentation and resources

Datasheet

Document

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3273672	PTFIX Series

Current - IEC	32 A	17.5 - 32 A
Current - UL	32 A	5 - 32 A
Features	Block of 3	Block of 3, Block of 9, Block of 6
Height (Max)	-	1.079 in
Height (Max)	-	18.7 - 33 mm
Height (Max) [Max]	30.9 mm	30.9 - 39.6 mm
Height (Max) [Max]	1.217 in	0.736 - 1.559 in
Housing Color	Black	Orange, Red, Violet, Black, White, Pink, Green
Length	-	1.126 - 2.287 in
Length	-	28.6 - 58.1 mm
Length [x]	45.7 mm	21.6 - 45.7 mm
Length [x]	1.799 "	0.85 - 1.799 in
Material - Insulation	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	DIN Rail	DIN Rail, Direct Mount
Number of Levels	1	1
Number of Positions	6	6 - 18
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-60 °C	-60 °C
Stripping Length	-	10 mm
Stripping Length	-	12 mm
Stripping Length [Max]	12 mm	12 mm
Stripping Length [Min]	10 mm	10 mm
Terminal - Width	-	12.5 - 36.9 mm
Terminal - Width [y]	18.5 mm	15.6 - 55.4 mm
Termination Style	Push In, Spring	Push In, Spring
Type	Middle	Middle
Voltage - IEC	800 V	450 - 800 V
Voltage - UL	-	300 V
Wire Gauge or Range - AWG [Max]	24 AWG	24 - 26 AWG
Wire Gauge or Range - AWG [Min]	10 AWG	10 - 14 AWG
Wire Gauge or Range - mm² [Max]	6 mm²	1.5 - 6 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²	0.14 - 0.2 mm²

PTFIX Series

DIN Rail Terminal Blocks PTFIX 18X1,5-NS15AVT 1.5 mm2 DIN RAIL MN

Part	Type	Number of Positions	Termination Style	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Terminal - Width [y]	Current - UL	Voltage - IEC	Number of Levels	Height (Max) [Max]	Height (Max) [Max]	Material - Insulation	Material Flammability Rating	Stripping Length	Features	Housing Color	Mounting Type	Length	Length	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Current - IEC	Stripping Length [Min]	Stripping Length [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Voltage - UL	Height (Max) [Max] [z]	Height (Max)	Terminal - Width
Phoenix Contact 3273018	Middle	6	Push In, Spring	0.14 mm²	4 mm²	28.6 mm	5 A	500 V	1	1.559 in	39.6 mm	Nylon, Polyamide (PA)	UL94 V-0	10 mm	Block of 3	Orange	DIN Rail	2.287 in	58.1 mm	12 AWG	26 AWG	24 A
Phoenix Contact 3273970	Middle	18	Push In, Spring	0.2 mm²	6 mm²	55.4 mm	32 A	450 V	1			Nylon, Polyamide (PA)	UL94 V-0		Block of 9	Red	Direct Mount	1.126 in	28.6 mm	10 AWG	24 AWG	32 A	10 mm	12 mm	130 °C	-60 °C
Phoenix Contact 3002975	Middle	18	Push In, Spring	0.14 mm²	1.5 mm²	37.4 mm		450 V	1			Nylon, Polyamide (PA)	UL94 V-0	10 mm	Block of 3	Violet	DIN Rail			14 AWG	26 AWG	17.5 A			130 °C	-60 °C	0.85 in	21.6 mm	300 V	1.079 in	27.4 mm
Phoenix Contact 3273672	Middle	6	Push In, Spring	0.2 mm²	6 mm²	18.5 mm	32 A	800 V	1	1.217 in	30.9 mm	Nylon, Polyamide (PA)	UL94 V-0		Block of 3	Black	DIN Rail			10 AWG	24 AWG	32 A	10 mm	12 mm	130 °C	-60 °C	1.799 "	45.7 mm
Phoenix Contact 3002941	Middle	12	Push In, Spring	0.14 mm²	1.5 mm²	24.9 mm		450 V	1			Nylon, Polyamide (PA)	UL94 V-0	10 mm	Block of 6	White	DIN Rail			14 AWG	26 AWG	17.5 A			130 °C	-60 °C	0.85 in	21.6 mm	300 V	1.079 in	27.4 mm
Phoenix Contact 3273697	Middle	12	Push In, Spring	0.2 mm²	6 mm²		32 A	800 V	1	1.217 in	30.9 mm	Nylon, Polyamide (PA)	UL94 V-0		Block of 6	Pink	DIN Rail			10 AWG	24 AWG	32 A	10 mm	12 mm	130 °C	-60 °C	1.799 "	45.7 mm				36.9 mm
Phoenix Contact 3002904	Middle	12	Push In, Spring	0.14 mm²	1.5 mm²	24.9 mm		450 V	1	0.736 in		Nylon, Polyamide (PA)	UL94 V-0	10 mm	Block of 6	Orange	Direct Mount			14 AWG	26 AWG	17.5 A			130 °C	-60 °C	0.85 in	21.6 mm	300 V		18.7 mm
Phoenix Contact 3274108	Middle	6	Push In, Spring	0.14 mm²	4 mm²	15.6 mm		500 V	1	1.299 in		Nylon, Polyamide (PA)	UL94 V-0	10 mm	Block of 3	Green	DIN Rail			14 AWG	26 AWG	24 A					1.11 in	28.19 mm			33 mm
Phoenix Contact 3002900	Middle	6	Push In, Spring	0.14 mm²	1.5 mm²			450 V	1	0.736 in		Nylon, Polyamide (PA)	UL94 V-0	10 mm	Block of 3	Pink	Direct Mount			14 AWG	26 AWG	17.5 A			130 °C	-60 °C	0.85 in	21.6 mm	300 V		18.7 mm	12.5 mm
Phoenix Contact 3002878	Middle	12	Push In, Spring	0.14 mm²	1.5 mm²	24.9 mm		450 V	1	0.736 in		Nylon, Polyamide (PA)	UL94 V-0	10 mm	Block of 6	Red	Direct Mount			14 AWG	26 AWG	17.5 A			130 °C	-60 °C	0.85 in	21.6 mm	300 V		18.7 mm
