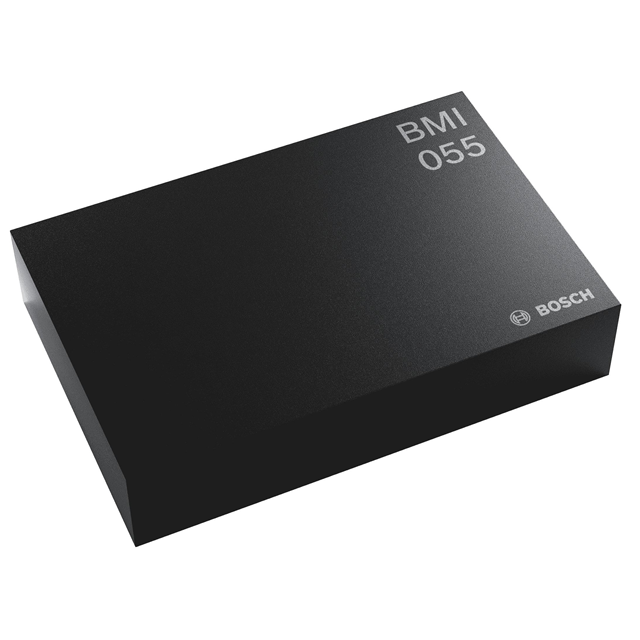

BMI055

Obsolete

Bosch Sensortec

IMU ACCEL/GYRO I2C/SPI 16LGA

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

IMU ACCEL/GYRO I2C/SPI 16LGA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMI055	BMI055 Series

Contents	-	Board(s)
Function	-	Accelerometer, Gyroscope
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	I2C, SPI	I2C, SPI
Sensor Type	Accelerometer, Gyroscope, 6 Axis	Accelerometer, Gyroscope, 6 Axis
Supplier Device Package	16-LGA (4.5x3)	16-LGA (4.5x3)
Type	-	Sensor
Utilized IC / Part	-	BMI055

SHUTTLE BOARD BMI055

Part	Utilized IC / Part	Type	Function	Contents	Mounting Type	Sensor Type	Output Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]
Bosch Sensortec BMI055-SHUTL	BMI055	Sensor	Accelerometer, Gyroscope	Board(s)
Bosch Sensortec BMI055					Surface Mount	6 Axis, Accelerometer, Gyroscope	I2C, SPI	16-LGA (4.5x3)	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Accelerometer, Gyroscope, 6 Axis Sensor I2C, SPI Output
