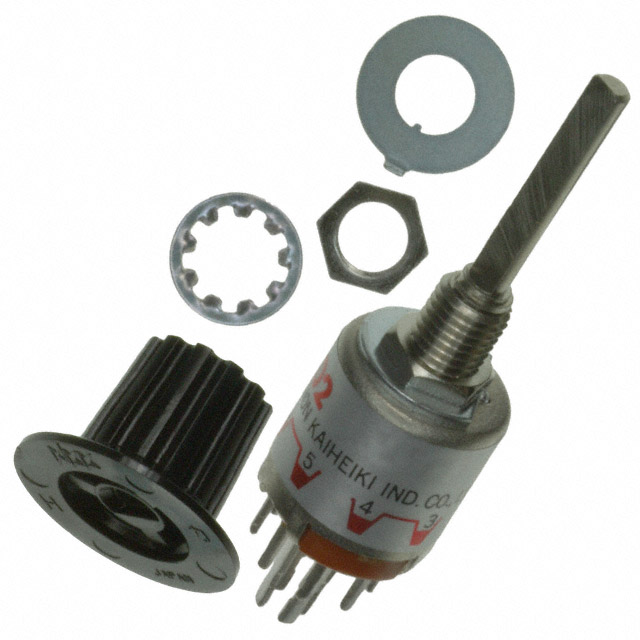

MRX402-A

Active

NKK Switches

SWITCH ROTARY 2POS 2A 125V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH ROTARY 2POS 2A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	MRX402-A

Actuator Length [x]	13 mm
Actuator Type	Knob
Angle of Throw	45 °
Circuit per Deck [custom]	4PDT
Contact Material	Silver Alloy
Contact Timing	Non-Shorting
Current Rating (Amps)	2 A, 1 A
Depth Behind Panel [z]	27.3 mm
Features	Sealed - Flux Protection
Index Stops	Fixed
Mounting Type	Through Hole, Panel Mount
Number of Decks [custom]	1
Number of Positions	2
Panel Cutout Dimensions [diameter]	0.25 in
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Voltage Rating - AC	Current Rating (Amps)	Index Stops	Circuit per Deck [custom]	Panel Cutout Dimensions [diameter]	Features	Contact Material	Depth Behind Panel [z]	Voltage Rating - DC	Termination Style	Actuator Type	Contact Timing	Number of Decks [custom]	Actuator Length [x]	Number of Positions	Mounting Type	Angle of Throw
NKK Switches MRX402-BB	125 V	1 A 2 A	Fixed	4PDT	0.25 in	Sealed - Flux Protection	Silver Alloy	27.3 mm	30 V	PC Pin	Knob	Non-Shorting	1	14.3 mm	2	Panel Mount Through Hole	45 °
NKK Switches MRX402-A	125 V	1 A 2 A	Fixed	4PDT	0.25 in	Sealed - Flux Protection	Silver Alloy	27.3 mm	30 V	PC Pin	Knob	Non-Shorting	1	13 mm	2	Panel Mount Through Hole	45 °
NKK Switches MRX402-CC	125 V	1 A 2 A	Fixed	4PDT	0.25 in	Sealed - Flux Protection	Silver Alloy	27.3 mm	30 V	PC Pin	Knob	Non-Shorting	1	15.8 mm	2	Panel Mount Through Hole	45 °
NKK Switches MRX402-BF	125 V	1 A 2 A	Fixed	4PDT	0.25 in	Sealed - Flux Protection	Silver Alloy	27.3 mm	30 V	PC Pin	Knob	Non-Shorting	1	14.3 mm	2	Panel Mount Through Hole	45 °
NKK Switches MRX402-BH	125 V	1 A 2 A	Fixed	4PDT	0.25 in	Sealed - Flux Protection	Silver Alloy	27.3 mm	30 V	PC Pin	Knob	Non-Shorting	1	14.3 mm	2	Panel Mount Through Hole	45 °
NKK Switches MRX402-BC	125 V	1 A 2 A	Fixed	4PDT	0.25 in	Sealed - Flux Protection	Silver Alloy	27.3 mm	30 V	PC Pin	Knob	Non-Shorting	1	14.3 mm	2	Panel Mount Through Hole	45 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 2 Position 4PDT 2A (AC), 1A (DC) 125 VAC Panel Mount, Through Hole
