AXG8240J4

Obsolete

Panasonic Electric Works

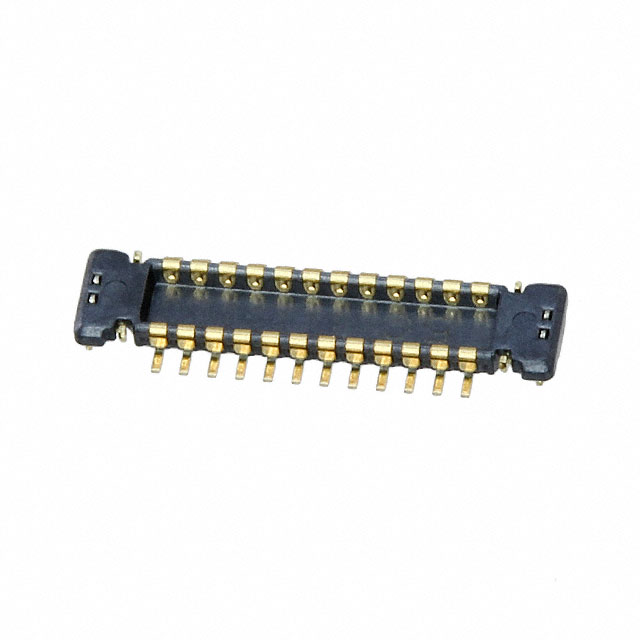

CONN PLUG 24POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN PLUG 24POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Features	Number of Positions	Number of Rows	Mated Stacking Heights	Mounting Type	Connector Type	Contact Finish	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]
Panasonic Electric Works AXG824044	Solder Retention	24	2	0.6 mm	Surface Mount	Outer Shroud Contacts Plug	Gold	0.46 mm	0.018 in	0.35 mm	0.014 in
Panasonic Electric Works AXG8240J4	Solder Retention		2	0.6 mm	Surface Mount	Outer Shroud Contacts Plug	Gold	0.46 mm	0.018 in	0.35 mm	0.014 in
Panasonic Electric Works AXG8240J4A	Solder Retention		2	0.6 mm	Surface Mount	Outer Shroud Contacts Plug	Gold	0.46 mm	0.018 in	0.35 mm	0.014 in
Panasonic Electric Works AXG824044A	Solder Retention	24	2	0.6 mm	Surface Mount	Outer Shroud Contacts Plug	Gold	0.46 mm	0.018 in	0.35 mm	0.014 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

26 (24 + 2 Power) Position Connector Plug, Outer Shroud Contacts Surface Mount Gold

Technical documentation and resources
