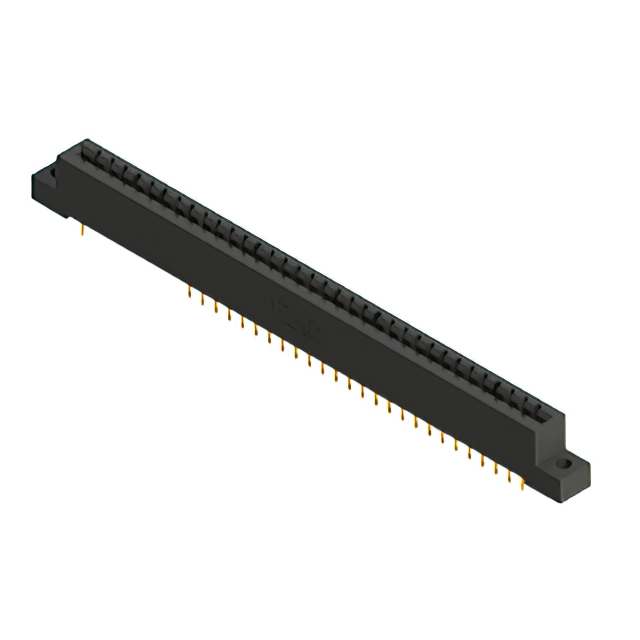

887-034-558-104
ActiveEDAC Inc.
CONN EDGE SGL FMALE 34POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
887-034-558-104
ActiveEDAC Inc.
CONN EDGE SGL FMALE 34POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 887-034-558-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 34 |
| Number of Positions/Bay/Row [custom] | 34 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
887-034 Series
...
| Part | Gender | Termination | Contact Finish | Number of Positions | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Termination Rows | Color | Flange Feature | Flange Feature | Flange Feature | Contact Material | Card Type | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Contact Type | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | Solder | Gold | 34 | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Through Hole Right Angle | 125 °C | -40 °C | 1 | 1 | Black | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Copper Alloy | Non Specified - Single Edge | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 34 | Cantilever | |||
EDAC Inc. | Female | Wire Wrap | Gold | 34 | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Through Hole | 125 °C | -40 °C | 1 | 1 | Black | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Non Specified - Single Edge | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 34 | Cantilever | |||||
EDAC Inc. | Female | Solder | Gold | 34 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Board Edge Straddle Mount | 125 °C | -40 °C | 2 | 2 | Black | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Copper Alloy | Non Specified - Dual Edge | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | Cantilever | Card Extender | |||
EDAC Inc. | Female | Solder | Gold | 34 | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Through Hole Right Angle | 125 °C | -40 °C | 1 | 1 | Black | Flush Mount Top Opening Unthreaded | Copper Alloy | Non Specified - Single Edge | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 34 | Cantilever | 3.96 mm | 0.156 in | |||
EDAC Inc. | Female | Wire Wrap | Gold | 34 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Through Hole | 125 °C | -40 °C | 2 | 2 | Black | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Non Specified - Dual Edge | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | Cantilever | ||||||
EDAC Inc. | Female | Wire Wrap | Gold | 34 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Through Hole | 125 °C | -40 °C | 2 | 2 | Black | 3.25 mm | 0.128 in | Copper Alloy | Non Specified - Dual Edge | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | Cantilever | |||||
EDAC Inc. | Female | Wire Wrap | Gold | 34 | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Through Hole | 125 °C | -40 °C | 1 | 1 | Black | Floating Bobbin Flush Mount | Copper Alloy | Non Specified - Single Edge | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 34 | Cantilever | 2.95 mm | 0.116 in | |||
EDAC Inc. | Female | Solder | Gold | 34 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Through Hole | 125 °C | -40 °C | 2 | 2 | Black | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Copper Alloy | Non Specified - Dual Edge | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | Cantilever | ||||
EDAC Inc. | Female | Solder | Gold | 34 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Board Edge Straddle Mount | 125 °C | -40 °C | 2 | 2 | Black | Copper Alloy | Non Specified - Dual Edge | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | Cantilever | Card Extender | ||||||
EDAC Inc. | Female | Solder | Gold | 34 | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Through Hole | 125 °C | -40 °C | 1 | 1 | Black | Floating Bobbin Top Mount Opening | Copper Alloy | Non Specified - Single Edge | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 34 | Cantilever | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 65.34 | |
Description
General part information
887-034 Series
34 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
