M49142/09-0017

Active

Cinch Connectivity Solutions Trompeter

TRT BULKHEAD CABLE JACK, STRAIGH

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

TRT BULKHEAD CABLE JACK, STRAIGH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 188.22

General part information

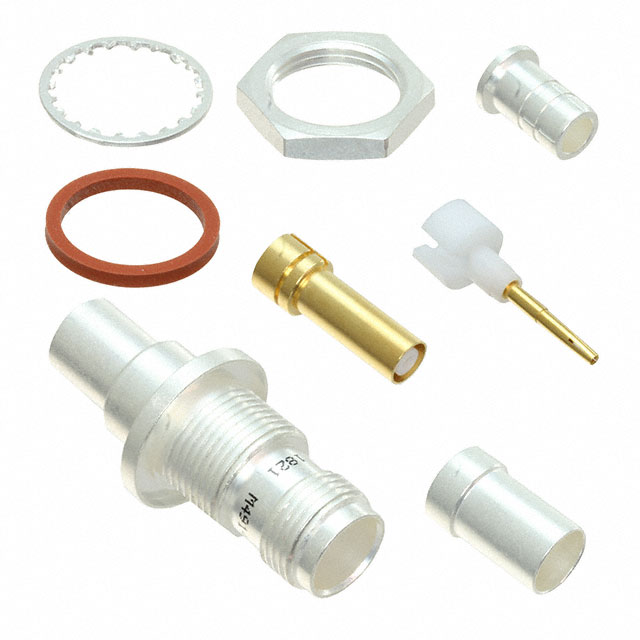

TRT, Twinaxial Connector Jack, Female Socket (Concentric) Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	M49142/09-0017	M49142/09 Series

Body Finish	Silver	Silver, Nickel
Body Material	Brass	Brass
Cable Group	-	RG-108, M17/176-00002
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	TRT, Twinaxial	TRT, Twinaxial
Connector Type	Female Socket (Concentric), Jack	Female Socket (Concentric), Jack
Contact Termination	Crimp	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	500 MHz	500 MHz
Housing Color	Silver	Silver
Impedance	-	Non-Constant
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Shield Termination	Crimp	Crimp

TRT BULKHEAD CABLE JACK, STRAIGH

Part	Center Contact Material	Mounting Feature	Contact Termination	Dielectric Material	Connector Style	Housing Color	Shield Termination	Frequency - Max [Max]	Body Material	Body Finish	Connector Type	Number of Ports	Center Contact Plating	Cable Group	Impedance	Mounting Type
Cinch Connectivity Solutions Trompeter M49142/09-0016	Beryllium Copper	Bulkhead - Front Side Nut	Solder	Polytetrafluoroethylene (PTFE)	TRT, Twinaxial	Silver	Crimp	500 MHz	Brass	Silver	Female Socket (Concentric), Jack	1	Gold	RG-108	Non-Constant
Cinch Connectivity Solutions Trompeter M49142/09-0006		Bulkhead - Front Side Nut	Solder		TRT, Twinaxial	Silver	Crimp	500 MHz		Nickel	Female Socket (Concentric), Jack	1	Gold	M17/176-00002	Non-Constant
Cinch Connectivity Solutions Trompeter M49142/09-0017	Beryllium Copper		Crimp	Polytetrafluoroethylene (PTFE)	TRT, Twinaxial	Silver	Crimp	500 MHz	Brass	Silver	Female Socket (Concentric), Jack	1	Gold			Free Hanging (In-Line)
