395-014-542-403

Active

EDAC Inc.

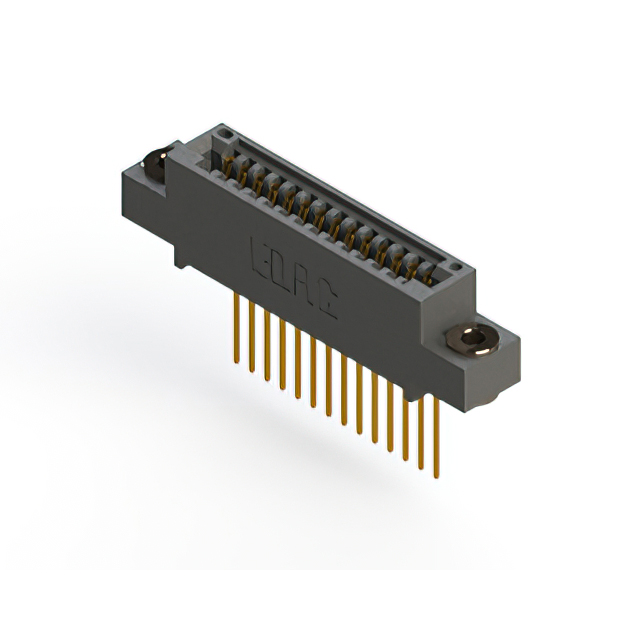

STANDARD CARD EDGE CONNECTORS .100" (2.54MM) PITCH CARD EDGE CONNECTOR

395-014-542-403

Active

EDAC Inc.

STANDARD CARD EDGE CONNECTORS .100" (2.54MM) PITCH CARD EDGE CONNECTOR

Description Specifications Series Pricing CAD Documents

Description

General part information

395 Series

14 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	395-014-542-403

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Top Mount Opening
Flange Feature Diameter	0.116 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	14
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Single
Termination	Wire Wrap
Termination Rows	1 rows

395 Series

...

Part	Gender	Contact Type	Features	Mounting Type	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Termination	Color	Number of Rows	Contact Finish Thickness	Pitch	Card Thickness (Min)	Card Thickness (Max)	Contact Material	Contact Finish	Flange Feature	Card Type	Read Out	Material - Insulation	Termination Rows	Flange Feature Diameter
EDAC Inc. 395-070-559-578	Female	Cantilever	Card Guides	Right Angle Through Hole	35 70	-40 °C	105 °C	Solder	Black	2	10 Ąin	0.1 in	0.054 in	0.07 in	Copper Alloy	Gold	4-40 Threaded Insert Top Mount Opening	Dual Edge Non Specified	Dual	Polyester Thermoplastic	2 rows
EDAC Inc. 395-014-542-403	Female	Cantilever		Through Hole	14	-40 °C	105 °C	Wire Wrap	Black	1	10 Ąin	0.1 in	0.054 in	0.07 in	Copper Alloy	Gold	Floating Bobbin Top Mount Opening	Non Specified Single Edge	Single	Polyester Thermoplastic	1 rows	0.116 in
EDAC Inc. 395-084-559-878	Female	Cantilever	Card Guides	Right Angle Through Hole	42 84	-40 °C	105 °C	Solder	Black	2	10 Ąin	0.1 in	0.054 in	0.07 in	Copper Alloy	Gold	4-40 Threaded Insert Top Mount Opening	Dual Edge Non Specified	Dual	Polyester Thermoplastic	2 rows
EDAC Inc. 395-086-542-502	Female	Cantilever		Through Hole	43 86	-40 °C	105 °C	Wire Wrap	Black	2	10 Ąin	0.1 in	0.054 in	0.07 in	Copper Alloy	Gold	Top Mount Opening Unthreaded	Dual Edge Non Specified	Dual			0.128 in
EDAC Inc. 395-086-556-588	Female	Cantilever	Card Extender Card Guides	Board Edge Straddle Mount	43 86	-40 °C	105 °C	Solder	Black	2	10 Ąin	0.1 in	0.054 in	0.07 in	Copper Alloy	Gold	4-40 Threaded Insert Top Mount Opening	Dual Edge Non Specified	Dual
EDAC Inc. 395-021-542-658	Female	Cantilever	Card Guides	Through Hole	21	-40 °C	105 °C	Wire Wrap	Black	1	10 Ąin	0.1 in	0.054 in	0.07 in	Copper Alloy	Gold	4-40 Threaded Insert Top Mount Opening	Non Specified Single Edge	Single	Polyester Thermoplastic	1 rows
EDAC Inc. 395-080-541-812	Female	Cantilever		Through Hole	40 80	-40 °C	105 °C	Wire Wrap	Black	2	10 Ąin	0.1 in	0.054 in	0.07 in	Copper Alloy	Gold	Side Mount Opening Unthreaded	Dual Edge Non Specified	Dual			0.128 in
EDAC Inc. 395-060-558-204	Female	Cantilever		Right Angle Through Hole	30 60	-40 °C	105 °C	Solder	Black	2	10 Ąin	0.1 in	0.054 in	0.07 in	Copper Alloy	Gold	Flush Mount Top Opening Unthreaded	Dual Edge Non Specified	Dual	Polyester Thermoplastic	2 rows	0.156 in
EDAC Inc. 395-098-540-512	Female	Cantilever		Through Hole	49 98	-40 °C	105 °C	Wire Wrap	Black	2	10 Ąin	0.1 in	0.054 in	0.07 in	Copper Alloy	Gold	Side Mount Opening Unthreaded	Dual Edge Non Specified	Dual	Polyester Thermoplastic	2 rows	0.128 in
EDAC Inc. 395-032-556-803	Female	Cantilever	Card Extender	Board Edge Straddle Mount	16 32	-40 °C	105 °C	Solder	Black	2	10 Ąin	0.1 in	0.054 in	0.07 in	Copper Alloy	Gold	Floating Bobbin Top Mount Opening	Dual Edge Non Specified	Dual	Polyester Thermoplastic	2 rows	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

395-014-542-403 | Datasheet
