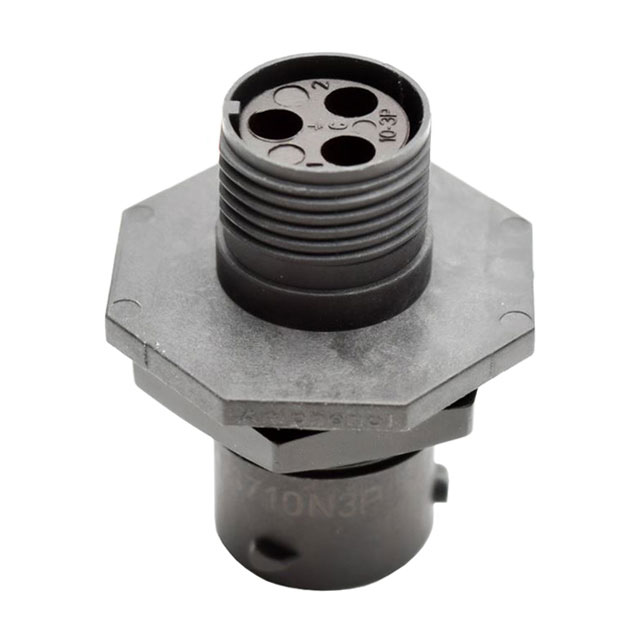

RTS710N3P03

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 3POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet ecomate-Family-Flyer-2019

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RTS710N3P03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Includes	1 O-Ring, 1 Gasket, 1 Nut, 1 Connector
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Size - Insert	10-3
Shielding	Unshielded
Type	For Male Pins

RTS710 Series

Part	Material Flammability Rating	Connector Type	Type	Features	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Size	Mounting Feature	Note	Includes	Shell Size - Insert	Contact Shape	Insert Material	Contact Type	Shielding	Orientation	Housing Color	Number of Positions	Ingress Protection	Current Rating (Amps)	Applications	Termination	Contact Material	Contact Finish - Mating	Mounting Type	Primary Material	Color	Voltage Rating	Contact Size
Amphenol Sine Systems Corp RTS710N6PHEC03	UL94 V-0	Receptacle Housing	For Male Pins	Backshell	Bayonet Lock	125 °C	-40 °C	20	Bulkhead - Front Side Nut	Contacts Not Included	1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal	10-6	Circular	Thermoplastic	Crimp	Unshielded	N	Black	6	IP67 IP69K
Amphenol Sine Systems Corp RTS710N4S03	UL94 V-0	Receptacle Housing	For Female Sockets		Bayonet Lock	125 °C	-40 °C	16	Bulkhead - Front Side Nut	Contacts Not Included	1 Connector 1 Gasket 1 Nut 1 O-Ring	10-4	Circular	Thermoplastic	Crimp	Unshielded	N	Black	4	IP67 IP69K
Amphenol Sine Systems Corp RTS710ND2S03	UL94 V-0	Receptacle Female Sockets		Board Guide	Bayonet Lock	125 °C	-40 °C		Bulkhead - Front Side Nut			10-2		Thermoplastic		Unshielded	N		4	IP67 IP69K	7.5 A 13 A	Automation Industrial Instrumentation Marine Telecom Transportation	Solder	Copper Alloy	Gold	Panel Mount Through Hole	Plastic	Black	500 VAC
Amphenol Sine Systems Corp RTS710N2PHEC03	UL94 V-0	Receptacle Housing	For Male Pins	Backshell	Bayonet Lock	125 °C	-40 °C		Bulkhead - Front Side Nut	Contacts Not Included	1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal	10-2	Circular	Thermoplastic	Crimp	Unshielded	N	Black	4	IP67 IP69K										16 (2) 20 (2)
Amphenol Sine Systems Corp RTS710N2P03	UL94 V-0	Receptacle Housing	For Male Pins		Bayonet Lock	125 °C	-40 °C		Bulkhead - Front Side Nut	Contacts Not Included	1 Connector 1 Gasket 1 Nut 1 O-Ring	10-2	Circular	Thermoplastic	Crimp	Unshielded	N	Black	4	IP67 IP69K										16 (2) 20 (2)
Amphenol Sine Systems Corp RTS710N6S03	UL94 V-0	Receptacle Housing	For Female Sockets		Bayonet Lock	125 °C	-40 °C	20	Bulkhead - Front Side Nut	Contacts Not Included	1 Connector 1 Gasket 1 Nut 1 O-Ring	10-6	Circular	Thermoplastic	Crimp	Unshielded	N	Black	6	IP67 IP69K
Amphenol Sine Systems Corp RTS710N3P03	UL94 V-0	Receptacle Housing	For Male Pins		Bayonet Lock	125 °C	-40 °C	16	Bulkhead - Front Side Nut	Contacts Not Included	1 Connector 1 Gasket 1 Nut 1 O-Ring	10-3	Circular	Thermoplastic	Crimp	Unshielded	N	Black		IP67 IP69K
Amphenol Sine Systems Corp RTS710N3W3P03	UL94 V-0	Receptacle Housing	For Male Pins		Bayonet Lock	125 °C	-40 °C		Bulkhead - Front Side Nut	Contacts Not Included	1 Connector 1 Gasket 1 Nut 1 O-Ring	10-3W3	Circular	Thermoplastic	Crimp	Unshielded	N	Black	6	IP67 IP69K							Plastic			16 (3) 20 (3)
Amphenol Sine Systems Corp RTS710N3W3S03	UL94 V-0	Receptacle Housing	For Female Sockets		Bayonet Lock	125 °C	-40 °C		Bulkhead - Front Side Nut	Contacts Not Included	1 Connector 1 Gasket 1 Nut 1 O-Ring	10-3W3	Circular	Thermoplastic	Crimp	Unshielded	N	Black	6	IP67 IP69K							Plastic			16 (3) 20 (3)
Amphenol Sine Systems Corp RTS710N6P03	UL94 V-0	Receptacle Housing	For Male Pins		Bayonet Lock	125 °C	-40 °C	20	Bulkhead - Front Side Nut	Contacts Not Included	1 Connector 1 Gasket 1 Nut 1 O-Ring	10-6	Circular	Thermoplastic	Crimp	Unshielded	N	Black	6	IP67 IP69K
