5202F1 0101000
ActiveBelden Inc.

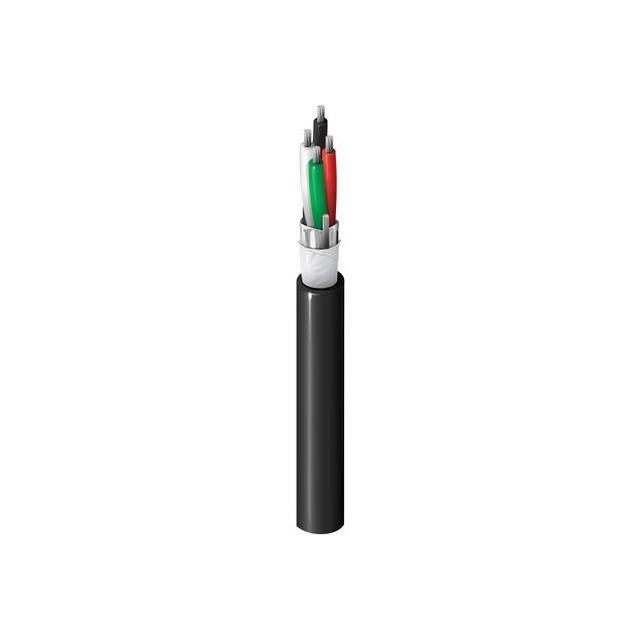

MULTI-CONDUCTOR CABLES 16AWG 4C SHIELD 1000FT SPOOL BLACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5202F1 0101000
ActiveBelden Inc.
MULTI-CONDUCTOR CABLES 16AWG 4C SHIELD 1000FT SPOOL BLACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5202F1 0101000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 24 |
| Features | Water-Blocked, Direct Burial, UV Resistant |
| Jacket (Insulation) Diameter [diameter] | 0.295 in |
| Jacket (Insulation) Diameter [diameter] | 7.49 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Sound, Security |
| Voltage | 300 V |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 0.86 | |
Description
General part information
5202F1 Series
4 Conductor Multi-Conductor Cable Black 16 AWG Foil 1000.0' (304.8m)
