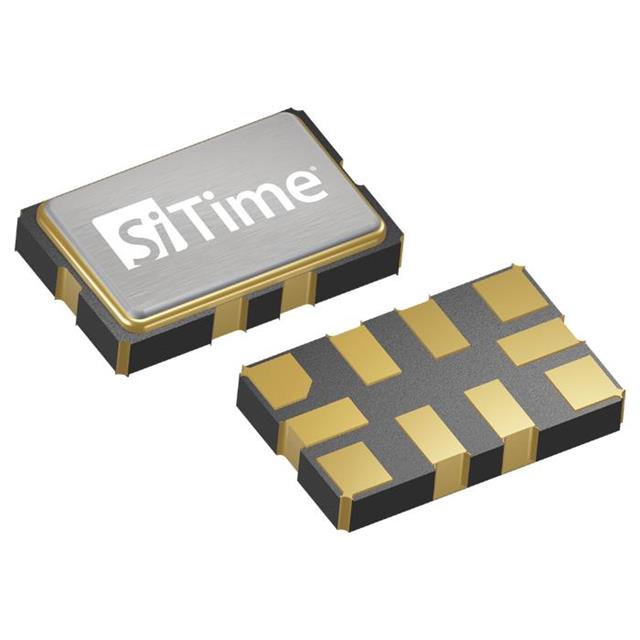

SiT5358AN-FR-33N0-49.152000

Active

SiTime

MEMS OSC TCXO 49.1520MHZ LVCMOS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SiT5358AN-FR-33N0-49.152000

Active

SiTime

MEMS OSC TCXO 49.1520MHZ LVCMOS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	1	$ 126.34
		10	$ 121.83
		50	$ 120.03

Description

General part information

SIT5358 Series

49.152 MHz TCXO LVCMOS Oscillator 3.3V 10-SMD, No Lead

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SiT5358AN-FR-33N0-49.152000	SIT5358 Series

Absolute Pull Range (APR)	-	5.78 ppm
Base Resonator	MEMS	MEMS
Current - Supply (Disable) (Max)	-	51 mA
Current - Supply (Max)	-	57 mA
Frequency	49.152 MHz	3.2768 - 50 MHz
Frequency Stability	50 ppb	50 ppb
Function	-	Enable/Disable
Height - Seated (Max) [Max] [z]	0.042 in	0.042 in
Height - Seated (Max) [Max] [z]	1.06 mm	1.06 mm
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	70 °C	70 - 105 °C
Operating Temperature [Min]	0 °C	-40 - 0 °C
Output	LVCMOS	Clipped Sine Wave, LVCMOS
Package / Case	10-SMD, No Lead	10-SMD, No Lead
Size / Dimension [x]	0.197 in	0.197 in
Size / Dimension [x]	5 mm	5 mm
Size / Dimension [y]	0.126 "	0.126 "
Size / Dimension [y]	3.2 mm	3.2 mm
Supplier Device Package	-	10-CQFN (5x3.2)
Type	TCXO	DCTCXO, TCXO, VCTCXO
Voltage - Supply	3.3 V	2.5 - 3.3 V

SIT5358 Series

MEMS OSC DCTCXO 38.4000MHZ LVCMO

Part	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Absolute Pull Range (APR)	Operating Temperature [Max]	Operating Temperature [Min]	Function	Mounting Type	Base Resonator	Voltage - Supply	Frequency Stability	Output	Frequency	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Supply (Disable) (Max) [Max]	Current - Supply (Max) [Max]
SiTime SiT5358ANCFR030IT-38.400000	DCTCXO	0.042 in	1.06 mm	5.78 ppm	70 °C	0 °C	Enable/Disable	Surface Mount	MEMS	3 V	50 ppb	Clipped Sine Wave	38.4 MHz	10-SMD, No Lead	0.197 in	0.126 "	3.2 mm	5 mm	51 mA
SiTime SIT5358AECFS-30E0-33.333333	TCXO	0.042 in	1.06 mm		105 ░C	-40 °C	Enable/Disable	Surface Mount	MEMS	3 V	50 ppb	Clipped Sine Wave	33.333333 MHz	10-SMD, No Lead	0.197 in	0.126 "	3.2 mm	5 mm	51 mA
SiTime SiT5358AN-FR-33N0-49.152000	TCXO	0.042 in	1.06 mm		70 °C	0 °C		Surface Mount	MEMS	3.3 V	50 ppb	LVCMOS	49.152 MHz	10-SMD, No Lead	0.197 in	0.126 "	3.2 mm	5 mm
SiTime SIT5358AICFS-33N0-3.276800	TCXO	0.042 in	1.06 mm		85 °C	-40 °C		Surface Mount	MEMS	3.3 V	50 ppb	Clipped Sine Wave	3.2768 MHz	10-SMD, No Lead	0.197 in	0.126 "	3.2 mm	5 mm
SiTime SIT5358AECFS-33E0-33.333333	TCXO	0.042 in	1.06 mm		105 ░C	-40 °C	Enable/Disable	Surface Mount	MEMS	3.3 V	50 ppb	Clipped Sine Wave	33.333333 MHz	10-SMD, No Lead	0.197 in	0.126 "	3.2 mm	5 mm	51 mA
SiTime SIT5358AI-FS-25VT-38.400000	VCTCXO	0.042 in	1.06 mm	5.78 ppm	85 °C	-40 °C		Surface Mount	MEMS	2.5 V	50 ppb	LVCMOS	38.4 MHz	10-SMD, No Lead	0.197 in	0.126 "	3.2 mm	5 mm		57 mA
SiTime SIT5358AI-FS-33VT-10.000000	VCTCXO	0.042 in	1.06 mm	5.78 ppm	85 °C	-40 °C		Surface Mount	MEMS	3.3 V	50 ppb	LVCMOS	10 MHz	10-SMD, No Lead	0.197 in	0.126 "	3.2 mm	5 mm		57 mA
SiTime SIT5358AICFS-33N0-26.000000	TCXO	0.042 in	1.06 mm		85 °C	-40 °C		Surface Mount	MEMS	3.3 V	50 ppb	Clipped Sine Wave	26 MHz	10-SMD, No Lead	0.197 in	0.126 "	3.2 mm	5 mm
SiTime SIT5358AI-FR-33E0-16.368000X	TCXO	0.042 in	1.06 mm		85 °C	-40 °C	Enable/Disable	Surface Mount	MEMS	3.3 V	50 ppb	LVCMOS	16.368 MHz	10-SMD, No Lead	0.197 in	0.126 "	3.2 mm	5 mm	51 mA
SiTime SIT5358ACCFS-33E0-36.000000	TCXO	0.042 in	1.06 mm		70 °C	-20 C	Enable/Disable	Surface Mount	MEMS	3.3 V	50 ppb	Clipped Sine Wave	36 MHz	10-SMD, No Lead	0.197 in	0.126 "	3.2 mm	5 mm	51 mA
