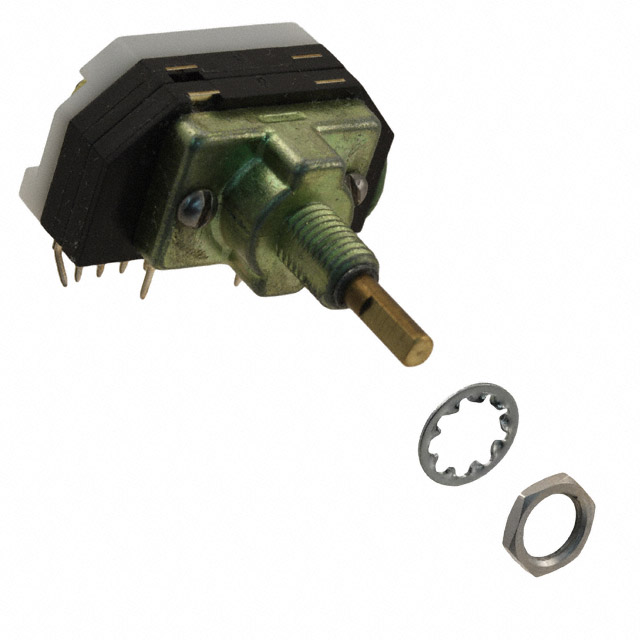

C3P0304N-A

Active

ELECTROSWITCH

SWITCH ROTARY 2-4POS 100MA 125V

Search across all available documentation for this part.

Active

ELECTROSWITCH

SWITCH ROTARY 2-4POS 100MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	C3P0304N-A

Actuator Length [x]	9.52 mm
Actuator Type	Flatted
Actuator Type [diameter]	3.17 mm
Angle of Throw	30 °
Circuit per Deck	3P4T
Contact Finish	Silver
Contact Material	Brass
Contact Timing	Non-Shorting
Current Rating (Amps)	100 mA, 250 mA
Depth Behind Panel [z]	22.38 mm
Index Stops	Adjustable
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Decks [custom]	1
Number of Poles per Deck	3
Number of Positions [Max]	4
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	6.76 mm
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Voltage Rating - DC	Circuit per Deck	Contact Material	Number of Poles per Deck	Voltage Rating - AC	Number of Decks [custom]	Depth Behind Panel [z]	Panel Cutout Dimensions [diameter]	Index Stops	Contact Finish	Number of Positions [Max]	Number of Positions [Min]	Angle of Throw	Contact Timing	Current Rating (Amps)	Actuator Length [x]	Termination Style	Actuator Type [diameter]	Actuator Type	Mounting Type
ELECTROSWITCH C3P0304N-A	28 V	3P4T	Brass	3	125 V	1	22.38 mm	6.76 mm	Adjustable	Silver	4	2	30 °	Non-Shorting	100 mA 250 mA	9.52 mm	PC Pin	3.17 mm	Flatted	Panel Mount Right Angle Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 47.86

General part information

Rotary Switch 2 ~ 4 Position 3P4T 100mA (AC), 250mA (DC) 125 VAC Panel Mount, Through Hole, Right Angle
