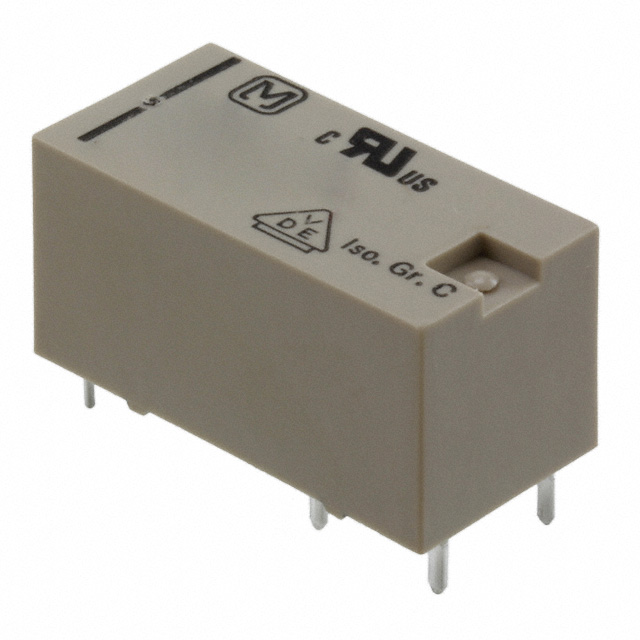

DE1A1B-L-5V

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE DPST 8A 5V

Deep-Dive with AI

DocumentsStandards Chart How to Read Date Codes +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DE1A1B-L-5V

Approval Agency	VDE, CSA, UR
Coil Current	20 mA
Coil Resistance	250 Ohms
Coil Type	Latching, Single Coil
Coil Voltage	5 VDC
Contact Form	DPST-NO/NC
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	8 A
Load - Max Switching	2500 VA, 300 W
Mounting Type	Through Hole
Must Operate Voltage	3.5 VDC
Operate Time	10 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	5 ms
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	PC Pin

DE1A1 Series

Part	Termination Style	Coil Type	Contact Rating (Current)	Mounting Type	Coil Voltage	Switching Voltage [Max]	Coil Current	Contact Form	Coil Resistance	Contact Material	Must Operate Voltage	Operate Time	Approval Agency	Load - Max Switching	Relay Type	Operating Temperature [Min]	Operating Temperature [Max]	Release Time	Must Release Voltage
Panasonic Electric Works DE1A1B-L-24V	PC Pin	Latching Single Coil	8 A	Through Hole	24 VDC	30 VDC 250 VAC	4.2 mA	DPST-NO/NC	5.76 kOhms	Silver Tin Oxide (AgSnO)	16.8 VDC	10 ms	CSA UR VDE	300 W 2500 VA	General Purpose	-40 °C	70 °C	5 ms
Panasonic Electric Works DE1A1B-L2-24V	PC Pin	Latching Dual Coil	8 A	Through Hole	24 VDC	30 VDC 250 VAC	8.3 mA	DPST-NO/NC	2.88 kOhms	Silver Tin Oxide (AgSnO)	16.8 VDC	10 ms	CSA UR VDE	300 W 2500 VA	General Purpose	-40 °C	70 °C	5 ms
Panasonic Electric Works DE1A1B-24V	PC Pin	Non Latching	8 A	Through Hole	24 VDC	30 VDC 250 VAC	8.3 mA	DPST-NO/NC	2.88 kOhms	Silver Tin Oxide (AgSnO)	16.8 VDC	10 ms	CSA UR VDE	300 W 2500 VA	General Purpose	-40 °C	70 °C	5 ms	2.4 VDC
Panasonic Electric Works DE1A1B-L2-12V	PC Pin	Latching Dual Coil	8 A	Through Hole	12 VDC	30 VDC 250 VAC	16.7 mA	DPST-NO/NC	720 Ohms	Silver Tin Oxide (AgSnO)	8.4 VDC	10 ms	CSA UR VDE	300 W 2500 VA	General Purpose	-40 °C	70 °C	5 ms
Panasonic Electric Works DE1A1B-L-12V	PC Pin	Latching Single Coil	8 A	Through Hole	12 VDC	30 VDC 250 VAC	8.3 mA	DPST-NO/NC	1440 Ohms	Silver Tin Oxide (AgSnO)	8.4 VDC	10 ms	CSA UR VDE	300 W 2500 VA	General Purpose	-40 °C	70 °C	5 ms
Panasonic Electric Works DE1A1B-12V	PC Pin	Non Latching	8 A	Through Hole	12 VDC	30 VDC 250 VAC	16.7 mA	DPST-NO/NC	720 Ohms	Silver Tin Oxide (AgSnO)	8.4 VDC	10 ms	CSA UR VDE	300 W 2500 VA	General Purpose	-40 °C	70 °C	5 ms	1.2 VDC
Panasonic Electric Works DE1A1B-L-5V	PC Pin	Latching Single Coil	8 A	Through Hole	5 VDC	30 VDC 250 VAC	20 mA	DPST-NO/NC	250 Ohms	Silver Tin Oxide (AgSnO)	3.5 VDC	10 ms	CSA UR VDE	300 W 2500 VA	General Purpose	-40 °C	70 °C	5 ms
Panasonic Electric Works DE1A1B-L2-3V	PC Pin	Latching Dual Coil	8 A	Through Hole		30 VDC 250 VAC	66.7 mA	DPST-NO/NC	45 Ohms	Silver Tin Oxide (AgSnO)	2.1 VDC	10 ms	CSA UR VDE	300 W 2500 VA	General Purpose	-40 °C	70 °C	5 ms
Panasonic Electric Works DE1A1B-L2-5V	PC Pin	Latching Dual Coil	8 A	Through Hole	5 VDC	30 VDC 250 VAC	40 mA	DPST-NO/NC	125 Ohms	Silver Tin Oxide (AgSnO)	3.5 VDC	10 ms	CSA UR VDE	300 W 2500 VA	General Purpose	-40 °C	70 °C	5 ms
