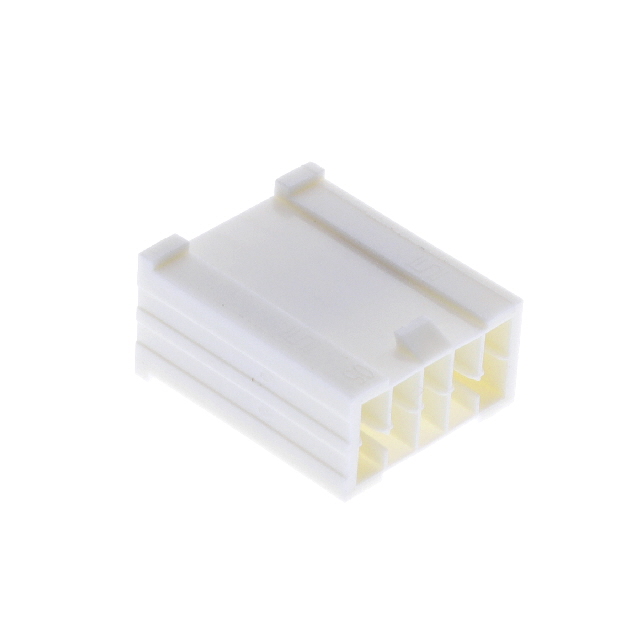

IPM1-05-D
ActiveSamtec Inc.
CONN HSG 10POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
IPM1-05-D
ActiveSamtec Inc.
CONN HSG 10POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IPM1-05-D |
|---|---|
| Color | White |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.55 | |
| 10 | $ 1.32 | |||
| 25 | $ 1.24 | |||
| 50 | $ 1.18 | |||
| 100 | $ 1.12 | |||
| 250 | $ 1.05 | |||
| 500 | $ 1.00 | |||
| 1000 | $ 0.95 | |||
| 2500 | $ 0.89 | |||
Description
General part information
IPM1-05 Series
10 Rectangular Connectors - Housings White 0.100" (2.54mm)
Documents
Technical documentation and resources
