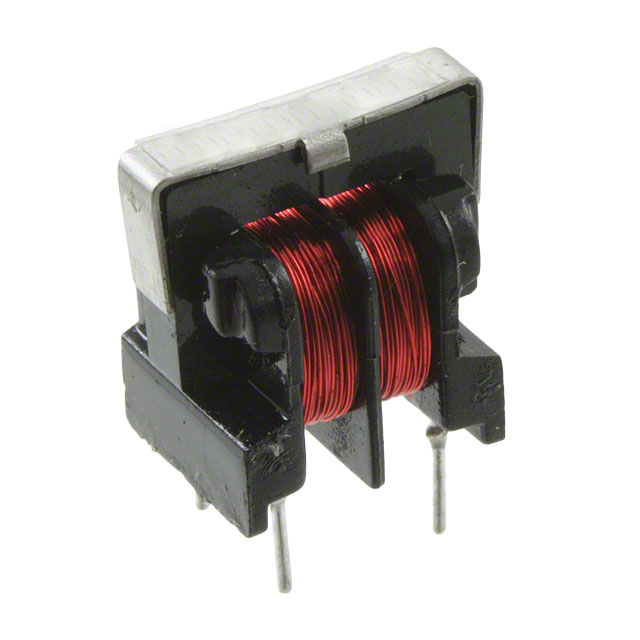

7355-H-RC
ActiveBourns Inc.
CMC 10MH 350MA 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7355-H-RC
ActiveBourns Inc.
CMC 10MH 350MA 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7355-H-RC |
|---|---|
| Current Rating (Max) [Max] | 350 mA |
| DC Resistance (DCR) (Max) [Max] | 2.2 Ohm |
| Height (Max) [Max] | 12 mm |
| Height (Max) [Max] | 0.472 in |
| Inductance @ Frequency | 10 mH, 1 kHz |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Horizontal |
| Package / Case | 4 Lead |
| Size / Dimension [x] | 17 mm |
| Size / Dimension [x] | 0.669 " |
| Size / Dimension [y] | 0.61 in |
| Size / Dimension [y] | 15.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 360 | $ 1.71 | |
Description
General part information
7355 Series
10 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 350mA DCR 2.2Ohm
