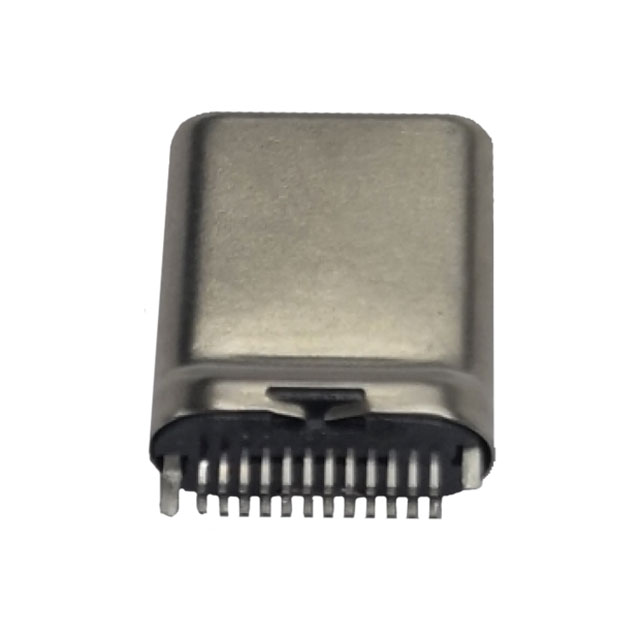

CU3124PAAHLA002-NH

Active

Cvilux USA

USB TYPE C 24 CIRCUITS PLUG PCB

Search across all available documentation for this part.

Active

Cvilux USA

USB TYPE C 24 CIRCUITS PLUG PCB

Technical Specifications

Parameters and characteristics for this part

Specification	CU3124PAAHLA002-NH

Connector Type	USB-C (USB TYPE-C)
Contact Finish	Gold
Gender	Plug
Insulation Color	Black
Mounting Feature	Horizontal
Mounting Type	Board Cutout, Right Angle, Surface Mount
Number of Contacts	24
Number of Ports	1
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Termination	Solder

USB TYPE C 24 CIRCUITS PLUG PCB

Part	Termination	Shielding	Shell/Shielding Material	Insulation Color	Contact Finish	Number of Ports	Gender	Connector Type	Mounting Feature	Mounting Type	Number of Contacts
Cvilux USA CU3124PAAHLA002-NH	Solder	Shielded	Stainless, Steel	Black	Gold	1	Plug	USB-C (USB TYPE-C)	Horizontal	Board Cutout, Right Angle, Surface Mount	24

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2000	$ 0.50

General part information

USB-C (USB TYPE-C) Plug Connector 24 Position Board Cutout, Surface Mount, Right Angle
