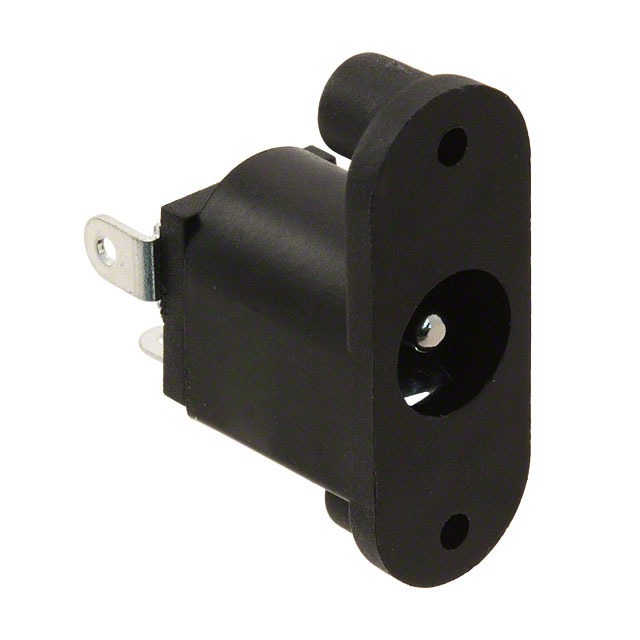

PJ-039A

Active

CUI Devices

CONN PWR JACK 2X5.5MM SOLDER

Search across all available documentation for this part.

Active

CUI Devices

CONN PWR JACK 2X5.5MM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-039A

Actual Diameter	6.3 mm, 2 mm
Actual Diameter [diameter]	0.079 in, 0.248 in
Body Color	Black
Connector Type	Jack
Contact Material	Copper Alloy, Brass
Contact Material - Plating	Tin
Current Rating (Amps)	2.5 A
Gender	Male
Housing Material	Polybutylene Terephthalate (PBT)
Industry Recognized Mating Diameter [diameter]	0.079 in, 0.217 "
Industry Recognized Mating Diameter [diameter]	2 mm, 5.5 mm
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mating Length/Depth [custom]	9 mm
Mating Length/Depth [custom]	0.354 in
Mounting Feature	Flange
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Termination	Solder Eyelet(s)
Voltage - Rated	24 VDC

Part	Body Color	Internal Switch(s)	Shielding	Housing Material	Number of Positions/Contacts	Termination	Contact Material	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Connector Type	Gender	Current Rating (Amps)	Contact Material - Plating	Operating Temperature [Min]	Operating Temperature [Max]	Mating Length/Depth [custom]	Mating Length/Depth [custom]	Material Flammability Rating	Mounting Feature	Voltage - Rated	Actual Diameter [diameter]	Actual Diameter	Contact Material - Plating [custom]
CUI Devices PJ-039A	Black	Normally Closed Single Switch	Unshielded	Polybutylene Terephthalate (PBT)	2 Conductors 3 Conductors	Solder Eyelet(s)	Brass Copper Alloy	0.079 in 0.217 "	2 mm 5.5 mm	Jack	Male	2.5 A	Tin	-25 °C	85 °C	9 mm	0.354 in	UL94 V-0	Flange	24 VDC	0.079 in 0.248 in	2 mm 6.3 mm
CUI Devices PJ-039BH	Black	Normally Closed Single Switch	Unshielded	Polybutylene Terephthalate (PBT)	2 Conductors 3 Conductors	Solder Eyelet(s)	Brass Copper Alloy	0.098 " 0.217 "	2.5 mm 5.5 mm	Jack	Male	5 A		-25 °C	85 °C	9 mm	0.354 in	UL94 V-0	Flange	24 VDC	0.079 in 0.248 in	2 mm 6.3 mm	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Panel Mount
