AWHW 40G-SMD
ActiveAssmann WSW Components
CONN HEADER SMD 40POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

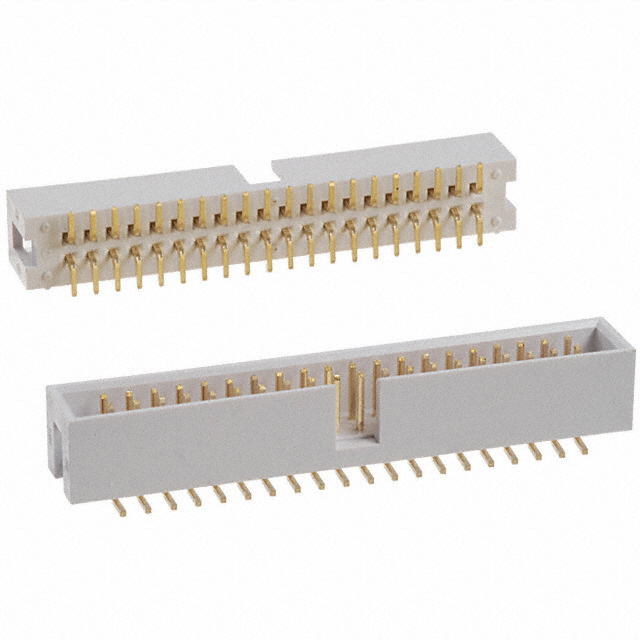

AWHW 40G-SMD
ActiveAssmann WSW Components
CONN HEADER SMD 40POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AWHW 40G-SMD |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Length - Mating | 5.9 mm |
| Contact Length - Mating | 0.232 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Features | Pick and Place, Keying Slot |
| Insulation Color | Black |
| Insulation Height | 9 mm |
| Insulation Height | 0.354 in |
| Insulation Material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
AWHW 40 Series
| Part | Shrouding | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Features | Fastening Type | Contact Material | Style | Contact Shape | Current Rating (Amps) | Number of Rows | Insulation Height | Insulation Height | Contact Length - Mating | Contact Length - Mating | Mounting Type | Connector Type | Material Flammability Rating | Number of Positions Loaded | Contact Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Insulation Color | Contact Finish Thickness - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Material | Contact Length - Mating [x] | Contact Length - Mating [x] | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Row Spacing - Mating | Row Spacing - Mating | Pitch - Mating [x] | Pitch - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Assmann WSW Components | Shrouded - 4 Wall | 0.1 in | 2.54 mm | Gold | Keying Slot Pick and Place | Push-Pull | Brass | Board to Cable/Wire | Square | 3 A | 2 | 9 mm | 0.354 in | 5.9 mm | 0.232 in | Surface Mount | Header | UL94 V-0 | All | Male Pin | 40 | -40 °C | 105 ░C | Solder | Black | Flash | 2.54 mm | 0.1 in | Polyamide (PA9T) Nylon 9T Glass Filled | |||||||||
Assmann WSW Components | Shrouded - 4 Wall | 0.1 in | 2.54 mm | Gold | Keying Slot | Push-Pull | Brass | Board to Cable/Wire | Square | 3 A | 2 | 8.95 mm | 0.352 in | Through Hole Right Angle | Header | UL94 V-0 | All | Male Pin | 40 | -40 °C | 105 ░C | Solder | Gray | Flash | 2.54 mm | 0.1 in | Polybutylene Terephthalate (PBT) Glass Filled | 0.224 in | 5.7 mm | 3.15 mm | 0.124 " | Tin | ||||||
Assmann WSW Components | Shrouded - 4 Wall | Gold | Keying Slot Pick and Place | Push-Pull | Brass | Board to Cable/Wire | Square | 1.5 A | 2 | 5.74 mm | 0.226 in | 4 mm | 0.157 in | Surface Mount | Header | UL94 V-0 | All | Male Pin | 40 | -40 °C | 105 ░C | Solder | Black | Flash | Polyamide (PA9T) Nylon 9T Glass Filled | 0.079 in | 2 mm | 0.079 in | 2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.01 | |
| 18 | $ 1.75 | |||
| 108 | $ 1.57 | |||
| 504 | $ 1.30 | |||
| 1008 | $ 1.12 | |||
| 5004 | $ 0.99 | |||
| 10008 | $ 0.97 | |||
Description
General part information
AWHW 40 Series
Connector Header Surface Mount 40 position 0.100" (2.54mm)
