GBPAX-9

Active

Curtis Industries

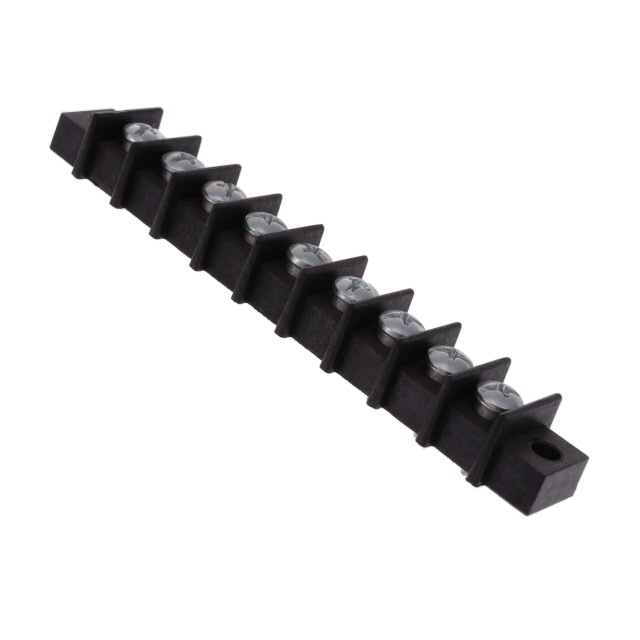

CONN BARRIER STRIP 9CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GBPAX-9

Active

Curtis Industries

CONN BARRIER STRIP 9CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 10.09

Description

General part information

GBPAX Series

9 Circuit 0.438" (11.12mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GBPAX-9	GBPAX Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	PC Pin	PC Pin
Color	Black	Black
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polyphenylene Oxide (PPO)	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole	Chassis, Panel, Through Hole
Number of Circuits	-	2 - 26
Number of Rows	1	1
Number of Wire Entries	9	2 - 26
Operating Temperature	110 °C	110 °C
Pitch [x]	11.12 mm	11.12 mm
Pitch [x]	0.438 in	0.438 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

GBPAX Series

CONN BARRIER STRP 24CIRC 0.438"

Part	Top Termination	Terminal Block Type	Pitch [x]	Pitch [x]	Material Flammability Rating	Number of Circuits	Terminal Screw Material	Mounting Type	Features	Wire Gauge [Min]	Wire Gauge [Max]	Number of Rows	Operating Temperature	Barrier Type	Material - Insulation	Color	Current Rating (Amps)	Bottom Termination	Number of Wire Entries
Curtis Industries GBPAX-24	Screws	Barrier Block	11.12 mm	0.438 in	UL94 V-0	24	Steel	Chassis, Panel, Through Hole	Flange	12 AWG	22 AWG	1	110 °C	2 Wall (Dual)	Polyphenylene Oxide (PPO)	Black	20 A	PC Pin
Curtis Industries GBPAX-19	Screws	Barrier Block	11.12 mm	0.438 in	UL94 V-0	19	Steel	Chassis, Panel, Through Hole	Flange	12 AWG	22 AWG	1	110 °C	2 Wall (Dual)	Polyphenylene Oxide (PPO)	Black	20 A	PC Pin	19
Curtis Industries GBPAX-2	Screws	Barrier Block	11.12 mm	0.438 in	UL94 V-0	2	Steel	Chassis, Panel, Through Hole	Flange	12 AWG	22 AWG	1	110 °C	2 Wall (Dual)	Polyphenylene Oxide (PPO)	Black	20 A	PC Pin	2
Curtis Industries GBPAX-3	Screws	Barrier Block	11.12 mm	0.438 in	UL94 V-0	3	Steel	Chassis, Panel, Through Hole	Flange	12 AWG	22 AWG	1	110 °C	2 Wall (Dual)	Polyphenylene Oxide (PPO)	Black	20 A	PC Pin	3
Curtis Industries GBPAX-13	Screws	Barrier Block	11.12 mm	0.438 in	UL94 V-0	13	Steel	Chassis, Panel, Through Hole	Flange	12 AWG	22 AWG	1	110 °C	2 Wall (Dual)	Polyphenylene Oxide (PPO)	Black	20 A	PC Pin	13
Curtis Industries GBPAX-25	Screws	Barrier Block	11.12 mm	0.438 in	UL94 V-0	25	Steel	Chassis, Panel, Through Hole	Flange	12 AWG	22 AWG	1	110 °C	2 Wall (Dual)	Polyphenylene Oxide (PPO)	Black	20 A	PC Pin	25
Curtis Industries GBPAX-4	Screws	Barrier Block	11.12 mm	0.438 in	UL94 V-0	4	Steel	Chassis, Panel, Through Hole	Flange	12 AWG	22 AWG	1	110 °C	2 Wall (Dual)	Polyphenylene Oxide (PPO)	Black	20 A	PC Pin	4
Curtis Industries GBPAX-9	Screws	Barrier Block	11.12 mm	0.438 in	UL94 V-0		Steel	Chassis, Panel, Through Hole	Flange	12 AWG	22 AWG	1	110 °C	2 Wall (Dual)	Polyphenylene Oxide (PPO)	Black	20 A	PC Pin	9
Curtis Industries GBPAX-26	Screws	Barrier Block	11.12 mm	0.438 in	UL94 V-0	26	Steel	Chassis, Panel, Through Hole	Flange	12 AWG	22 AWG	1	110 °C	2 Wall (Dual)	Polyphenylene Oxide (PPO)	Black	20 A	PC Pin	26
