1170-3/4"X18YD

Active

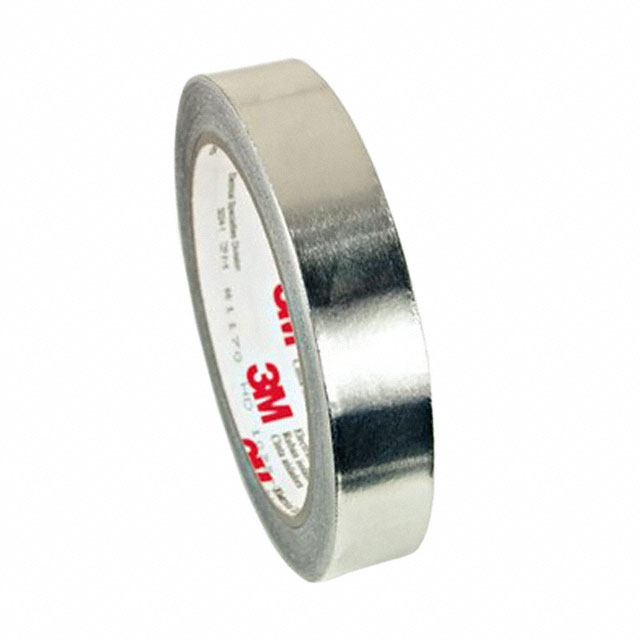

RF EMI SHIELDING TAPE 54'X0.75"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Date Code Decipher

1170-3/4"X18YD

Active

RF EMI SHIELDING TAPE 54'X0.75"

Deep-Dive with AI

DocumentsDatasheet Date Code Decipher

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1170-3/4"X18YD	1170 Series

Adhesive	Conductive, Single Sided	Conductive, Single Sided
Length	16.5 m	16.5 - 254 m
Length	54 ft	10 - 54 ft
Length	-	180 ft
Length	-	55 m
Material	Aluminum Foil	Aluminum Foil
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shape	Roll	Roll, Square
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Thickness - Overall	0.003 "	0.003 "
Thickness - Overall	0.08 mm	0.08 mm
Type	Shielding Tape	Shielding Tape, Shielding Sheet
Width	0.75 in	0.75 - 7.7 in
Width	19.1 mm	19.1 - 195 mm
Width	-	6 - 457.2 mm
Width	-	0.24 - 18 "
Width	-	25 - 584 mm
Width	-	0.98 - 22.992 in

1170 Series

RF EMI SHIELDING TAPE 54'X0.63"

Part	Adhesive	Length	Length	Material	Operating Temperature [Min]	Operating Temperature [Max]	Shelf Life	Type	Shape	Shelf Life Start	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Width [y]	Width [y]	Thickness - Overall	Thickness - Overall	Width	Width	Width [x]	Width [x]	Length [x]	Length [x]
3M 1170-5/8"X18YD	Conductive, Single Sided	16.5 m	54 ft	Aluminum Foil	-40 °C	130 °C	60 Months	Shielding Tape	Roll	Date of Manufacture	27 °C, 80 °F	10 °C	16 mm	0.63 "	0.003 "	0.08 mm
3M 1170 7.7"X10"	Conductive, Single Sided	254 mm	10 in	Aluminum Foil	-40 °C	130 °C	60 Months	Shielding Sheet	Square	Date of Manufacture	27 °C, 80 °F	10 °C			0.003 "	0.08 mm	7.7 in	195 mm
3M 1170 TAPE	Conductive, Single Sided	16.5 m	54 ft	Aluminum Foil	-40 °C	130 °C	60 Months	Shielding Sheet	Roll	Date of Manufacture	27 °C, 80 °F	10 °C			0.003 "	0.08 mm			584 mm	22.992 in
3M 1170-3/4"X18YD	Conductive, Single Sided	16.5 m	54 ft	Aluminum Foil	-40 °C	130 °C	60 Months	Shielding Tape	Roll	Date of Manufacture	27 °C, 80 °F	10 °C			0.003 "	0.08 mm	0.75 in	19.1 mm
3M 1170 2.5"X60YD	Conductive, Single Sided			Aluminum Foil	-40 °C	130 °C	60 Months	Shielding Tape	Roll	Date of Manufacture	27 °C, 80 °F	10 °C			0.003 "	0.08 mm			63.5 mm	2.5 in	180 ft	55 m
3M 1170 6MMX165MMC36	Conductive, Single Sided	16.5 m	54 ft	Aluminum Foil	-40 °C	130 °C	60 Months	Shielding Tape	Roll	Date of Manufacture	27 °C, 80 °F	10 °C	6 mm	0.24 in	0.003 "	0.08 mm
3M 1170 3"X18YD	Conductive, Single Sided	16.5 m	54 ft	Aluminum Foil	-40 °C	130 °C	60 Months	Shielding Tape	Roll	Date of Manufacture	27 °C, 80 °F	10 °C			0.003 "	0.08 mm			76.2 mm	3 in
3M 1170-1"X18YD	Conductive, Single Sided	16.5 m	54 ft	Aluminum Foil	-40 °C	130 °C	60 Months	Shielding Sheet, Shielding Tape	Roll	Date of Manufacture	27 °C, 80 °F	10 °C			0.003 "	0.08 mm		25.4 mm		1 in
3M 1170 4"X18YD	Conductive, Single Sided	16.5 m	54 ft	Aluminum Foil	-40 °C	130 °C	60 Months	Shielding Tape	Roll	Date of Manufacture	27 °C, 80 °F	10 °C			0.003 "	0.08 mm			101.6 mm	4 "
3M 1170 25MMX16,5MMC9	Conductive, Single Sided	16.5 m	54 ft	Aluminum Foil	-40 °C	130 °C	60 Months	Shielding Tape	Roll	Date of Manufacture	27 °C, 80 °F	10 °C			0.003 "	0.08 mm			25 mm	0.98 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 77.70
		12	$ 73.13
		36	$ 68.56
		60	$ 63.99
		108	$ 60.79

Description

General part information

1170 Series

RF EMI Shielding Tape 1170 Aluminum Foil Conductive, Single Sided 0.750" (19.10mm) X 54.000' (16.50m) X 0.003" (0.08mm)
