RF EMI SHIELDING SHEET 10"X7.7"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1170 7.7"X10"

Active

RF EMI SHIELDING SHEET 10"X7.7"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.80
		10	$ 8.29
		30	$ 7.23
		100	$ 6.37
		250	$ 5.88
		500	$ 5.59
		1000	$ 5.34

Description

General part information

1170 Series

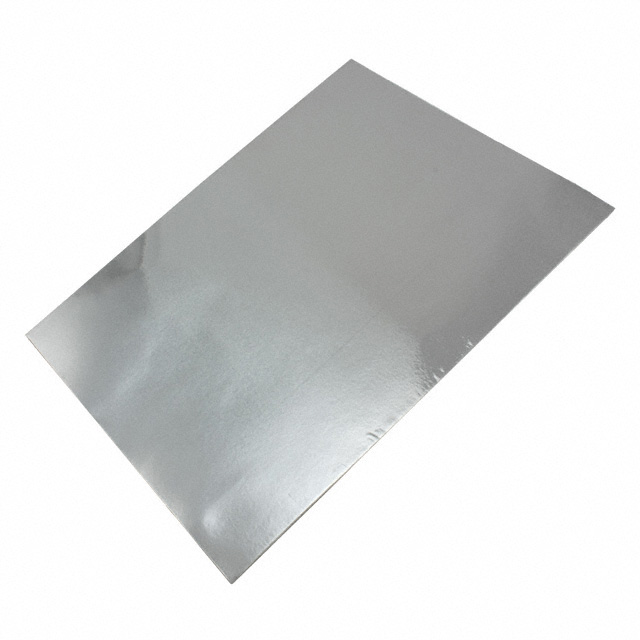

RF EMI Shielding Sheet 1170 Aluminum Foil Conductive, Single Sided 7.700" (195.00mm) X 10.000" (254.00mm) X 0.003" (0.08mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1170 7.7"X10"	1170 Series

Adhesive	Conductive, Single Sided	Conductive, Single Sided
Length	10 in	10 - 54 ft
Length	254 mm	16.5 - 254 m
Length	-	180 ft
Length	-	55 m
Material	Aluminum Foil	Aluminum Foil
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shape	Square	Roll, Square
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Thickness - Overall	0.003 "	0.003 "
Thickness - Overall	0.08 mm	0.08 mm
Type	Shielding Sheet	Shielding Tape, Shielding Sheet
Width	7.7 in	0.75 - 7.7 in
Width	195 mm	19.1 - 195 mm
Width	-	6 - 457.2 mm
Width	-	0.24 - 18 "
Width	-	25 - 584 mm
Width	-	0.98 - 22.992 in

1170 Series

RF EMI SHIELDING TAPE 54'X0.63"

Part	Adhesive	Length	Length	Material	Operating Temperature [Min]	Operating Temperature [Max]	Shelf Life	Type	Shape	Shelf Life Start	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Width [y]	Width [y]	Thickness - Overall	Thickness - Overall	Width	Width	Width [x]	Width [x]	Length [x]	Length [x]
3M 1170-5/8"X18YD	Conductive, Single Sided	16.5 m	54 ft	Aluminum Foil	-40 °C	130 °C	60 Months	Shielding Tape	Roll	Date of Manufacture	27 °C, 80 °F	10 °C	16 mm	0.63 "	0.003 "	0.08 mm
3M 1170 7.7"X10"	Conductive, Single Sided	254 mm	10 in	Aluminum Foil	-40 °C	130 °C	60 Months	Shielding Sheet	Square	Date of Manufacture	27 °C, 80 °F	10 °C			0.003 "	0.08 mm	7.7 in	195 mm
3M 1170 TAPE	Conductive, Single Sided	16.5 m	54 ft	Aluminum Foil	-40 °C	130 °C	60 Months	Shielding Sheet	Roll	Date of Manufacture	27 °C, 80 °F	10 °C			0.003 "	0.08 mm			584 mm	22.992 in
3M 1170-3/4"X18YD	Conductive, Single Sided	16.5 m	54 ft	Aluminum Foil	-40 °C	130 °C	60 Months	Shielding Tape	Roll	Date of Manufacture	27 °C, 80 °F	10 °C			0.003 "	0.08 mm	0.75 in	19.1 mm
3M 1170 2.5"X60YD	Conductive, Single Sided			Aluminum Foil	-40 °C	130 °C	60 Months	Shielding Tape	Roll	Date of Manufacture	27 °C, 80 °F	10 °C			0.003 "	0.08 mm			63.5 mm	2.5 in	180 ft	55 m
3M 1170 6MMX165MMC36	Conductive, Single Sided	16.5 m	54 ft	Aluminum Foil	-40 °C	130 °C	60 Months	Shielding Tape	Roll	Date of Manufacture	27 °C, 80 °F	10 °C	6 mm	0.24 in	0.003 "	0.08 mm
3M 1170 3"X18YD	Conductive, Single Sided	16.5 m	54 ft	Aluminum Foil	-40 °C	130 °C	60 Months	Shielding Tape	Roll	Date of Manufacture	27 °C, 80 °F	10 °C			0.003 "	0.08 mm			76.2 mm	3 in
3M 1170-1"X18YD	Conductive, Single Sided	16.5 m	54 ft	Aluminum Foil	-40 °C	130 °C	60 Months	Shielding Sheet, Shielding Tape	Roll	Date of Manufacture	27 °C, 80 °F	10 °C			0.003 "	0.08 mm		25.4 mm		1 in
3M 1170 4"X18YD	Conductive, Single Sided	16.5 m	54 ft	Aluminum Foil	-40 °C	130 °C	60 Months	Shielding Tape	Roll	Date of Manufacture	27 °C, 80 °F	10 °C			0.003 "	0.08 mm			101.6 mm	4 "
