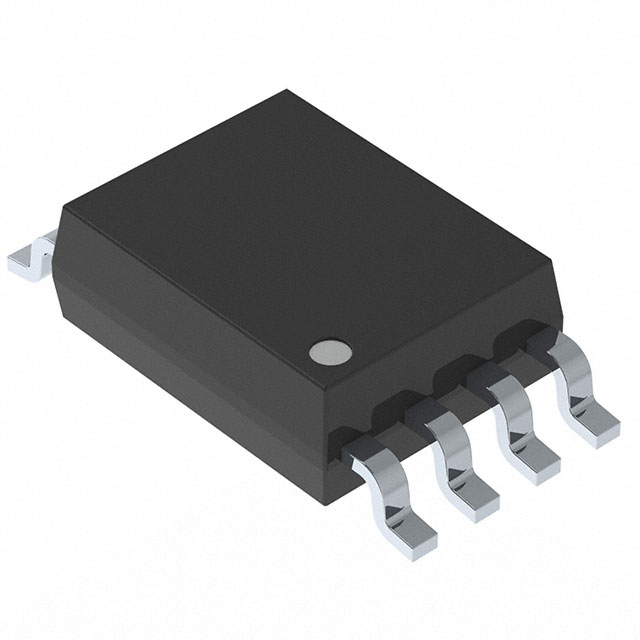

MUSES8832E

Active

Nisshinbo Micro Devices Inc

IC AUDIO 2 CIRCUIT 8SOP

Search across all available documentation for this part.

Active

Nisshinbo Micro Devices Inc

IC AUDIO 2 CIRCUIT 8SOP

Technical Specifications

Parameters and characteristics for this part

IC AUDIO 2 CIRCUIT 8SOP

Part	Output Type	Slew Rate	Current - Supply	Package / Case	Package / Case [y]	Package / Case [x]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Gain Bandwidth Product	Supplier Device Package	Current - Output / Channel	Voltage - Supply Span (Min) [Min]	Number of Circuits	Amplifier Type	Voltage - Supply Span (Max) [Max]	Voltage - Input Offset	Current - Input Bias
Nisshinbo Micro Devices Inc MUSES8832E	Rail-to-Rail	1 V/µs	7.5 mA	8-SOIC	3.9 mm	0.154 in	Surface Mount	125 °C	-40 °C	10 MHz	8-SOP	32 mA	2.7 V	2	Audio	14 V	100 çV	4 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	100	$ 7.90

General part information

Audio Amplifier 2 Circuit Rail-to-Rail 8-SOP
