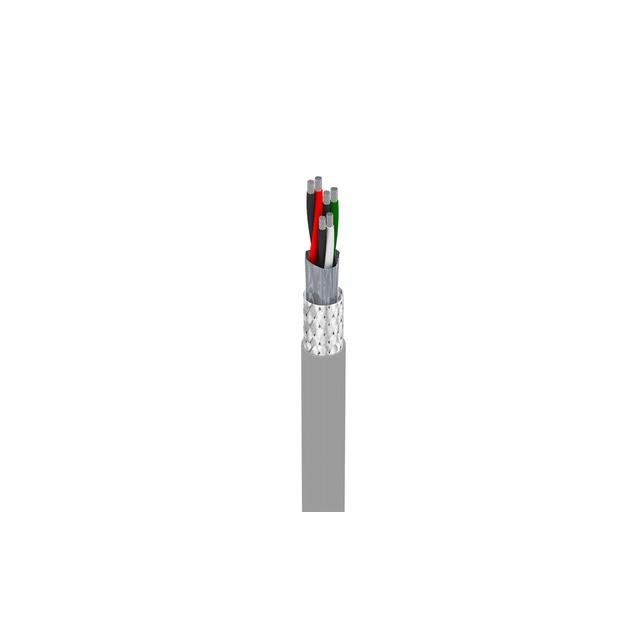

76703TS 0081000
ActiveBelden Inc.
MULTI-PAIR 6CON 22AWG GRAY FEET
Deep-Dive with AI
Search across all available documentation for this part.
76703TS 0081000
ActiveBelden Inc.
MULTI-PAIR 6CON 22AWG GRAY FEET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 76703TS 0081000 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 34 AWG |
| Conductor Strand [custom] | 19 Strands |
| Features | Oil Resistant, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.301 in |
| Jacket (Insulation) Diameter [diameter] | 7.65 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.04 in |
| Jacket (Insulation) Thickness | 1.016 mm |
| Jacket Color | Gray |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 6 |
| Ratings | UL Style 20006 |
| Shield Coverage | 100 %, 85 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Spool Size | 1000 ft |
| Spool Size | 304.8 m |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 3.07 | |
| 2 | $ 2.93 | |||
| 3 | $ 2.85 | |||
| 5 | $ 2.75 | |||
| 7 | $ 2.68 | |||
| 10 | $ 2.62 | |||
| 25 | $ 2.45 | |||
| 50 | $ 2.33 | |||
| 100 | $ 2.22 | |||
Description
General part information
76703TS Series
6 (3 Pair) Conductor Multi-Pair Cable Gray 22 AWG Foil, Braid Enter Number of Feet in Order Quantity
