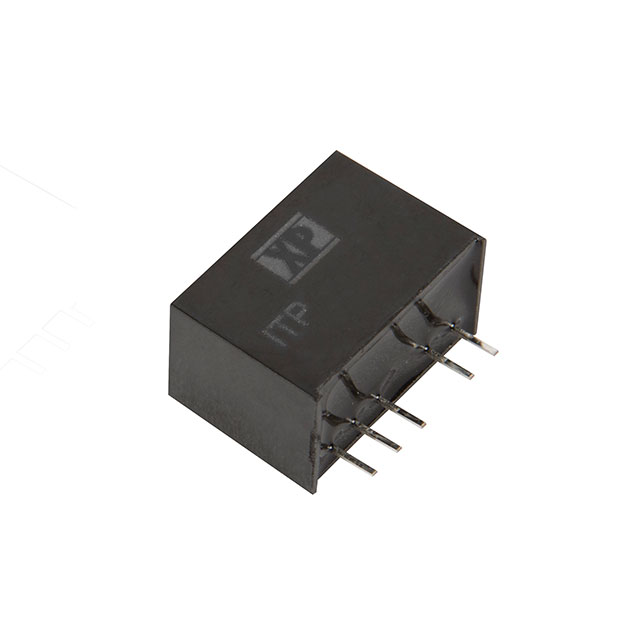

ITP0324S05
ActiveXP POWER
DC DC CONVERTER 5V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ITP0324S05
ActiveXP POWER
DC DC CONVERTER 5V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ITP0324S05 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 600 mA |
| Features | Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 75 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-SIP Module, 5 Leads |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 17 mm |
| Size / Dimension [x] | 0.67 in |
| Size / Dimension [y] | 9.5 mm |
| Size / Dimension [y] | 0.38 in |
| Size / Dimension [z] | 12.2 mm |
| Size / Dimension [z] | 0.48 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 14.95 | |
| 5 | $ 14.50 | |||
| 10 | $ 14.05 | |||
| 25 | $ 13.46 | |||
| 100 | $ 12.56 | |||
Description
General part information
ITP0324 Series
Isolated Module DC DC Converter 1 Output 5V 600mA 9V - 36V Input
