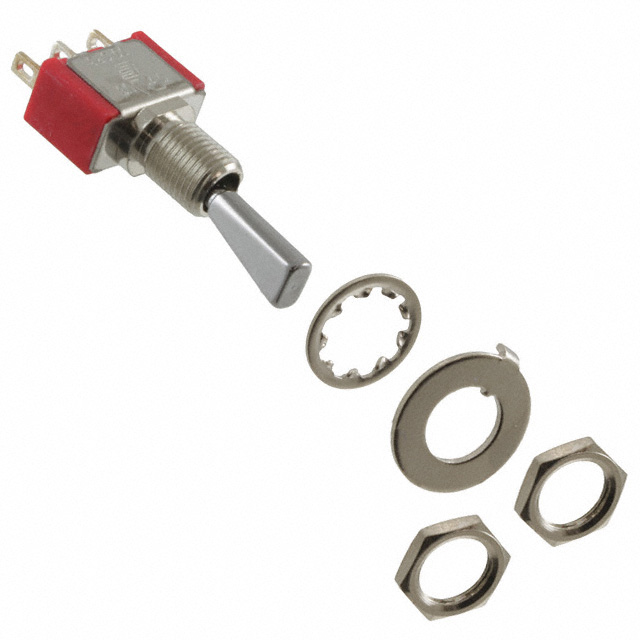

100SP2T6B11M1QEH
ActiveE-Switch
SWITCH TOGGLE SPDT 5A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
100SP2T6B11M1QEH
ActiveE-Switch
SWITCH TOGGLE SPDT 5A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 100SP2T6B11M1QEH |
|---|---|
| Actuator Length [x] | 12.3 mm |
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Flat Anti-Rotation |
| Bushing Thread | 1/4-40 |
| Circuit | SPDT |
| Current Rating (Amps) | 5 A |
| Electrical Life | 40000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 0.25 in |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
100DP1 Series
...
| Part | Features | Termination Style | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Bushing Thread | Actuator Type | Voltage Rating - AC | Actuator Length [x] | Illumination | Circuit | Actuator Material | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Switch Function | Electrical Life | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch | Epoxy Sealed Terminals | PC Pin | 28 V | 11.91 mm | 15/32-32 | Standard Round | 120 V | 13 mm | Non-Illuminated | 3PDT | Brass Chrome Plated | -30 ░C | 85 °C | 5 A | On-On | 40000 Cycles | |
E-Switch | Epoxy Sealed Terminals | PC Pin | 28 V | Unthreaded | Standard Round | 120 V | 5.08 mm | Non-Illuminated | 3PDT | Brass Chrome Plated | -30 ░C | 85 °C | 5 A | On-On | 40000 Cycles | Through Hole Right Angle | |
E-Switch | Epoxy Sealed Terminals | PC Pin | 28 V | 0.25 in | 1/4-40 | Standard Round | 120 V | 10.41 mm | Non-Illuminated | DPDT | Brass Chrome Plated | -30 ░C | 85 °C | 5 A | On-On | 40000 Cycles | |
E-Switch | PC Pin | 28 V | 0.25 in | 1/4-40 | Standard Round | 120 V | 12.19 mm | Non-Illuminated | SPDT | Brass Chrome Plated | -30 ░C | 85 °C | 5 A | On-Mom | 40000 Cycles | ||
E-Switch | Epoxy Sealed Terminals | PC Pin | 20 V | Unthreaded | Standard Round | 20 V | 10.41 mm | Non-Illuminated | SPDT | Brass Chrome Plated | -30 ░C | 85 °C | 0.4 VA | On-On | 40000 Cycles | Through Hole | |
E-Switch | Epoxy Sealed Terminals | PC Pin | 28 V | Unthreaded | Standard Round | 120 V | 5.08 mm | Non-Illuminated | SPDT | Brass Chrome Plated | -30 ░C | 85 °C | 5 A | On-Off-On | 40000 Cycles | Through Hole | |
E-Switch | Epoxy Sealed Terminals | Wire Wrap | 20 V | 0.25 in | 1/4-40 | Flat Anti-Rotation | 20 V | 12.3 mm | Non-Illuminated | SPDT | Brass Chrome Plated | -30 ░C | 85 °C | 0.4 VA | On-On | 40000 Cycles | |
E-Switch | Epoxy Sealed Terminals | Solder Lug | 28 V | 0.25 in | 1/4-40 | Standard Round | 120 V | 5.08 mm | Non-Illuminated | SPDT | Brass Chrome Plated | -30 ░C | 85 °C | 5 A | On-Off-Mom | 40000 Cycles | |
E-Switch | Epoxy Sealed Terminals | Solder Lug | 28 V | 0.25 in | 1/4-40 | Standard Round | 120 V | 16.26 mm | Non-Illuminated | SPDT | Brass Chrome Plated | -30 ░C | 85 °C | 5 A | On-On | 40000 Cycles | |
E-Switch | Epoxy Sealed Terminals | PC Pin | 20 V | Unthreaded | Flat Anti-Rotation | 20 V | 12.3 mm | Non-Illuminated | SPDT | Brass Chrome Plated | -30 ░C | 85 °C | 0.4 VA | Mom-Off-Mom | 40000 Cycles | Through Hole |
