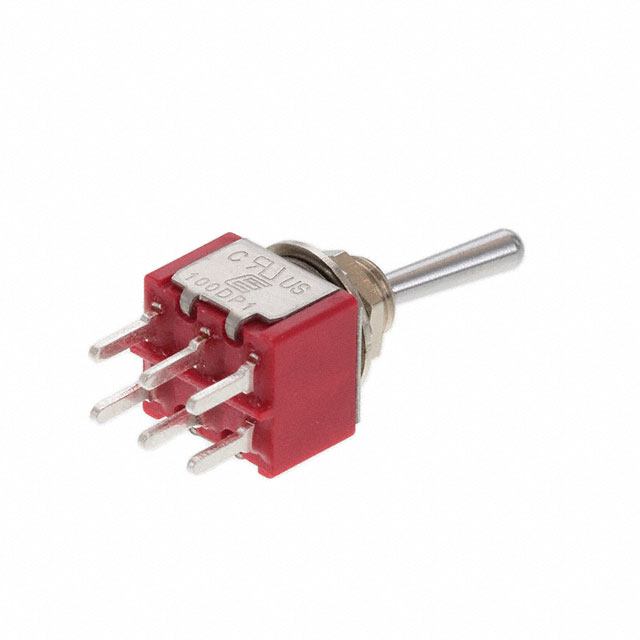

Specification	100DP1T1B3M2QEH

Actuator Length	10.41 mm
Actuator Material	Chrome Plated, Brass
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	DPDT
Current Rating	5 A
Electrical Life (Cycles)	40000
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Mounting Type	Panel Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Panel Cutout Diameter	0.25 "
Panel Cutout Shape	Circular
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

100DP1 Series

Part	Actuator Material	Electrical Life (Cycles)	Voltage Rating - DC	Actuator Length	Switch Function	Circuit	Actuator Type	Bushing Thread	Mounting Type	Features	Voltage Rating - AC	Panel Cutout Diameter	Panel Cutout Shape	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Termination Style	Illumination	Termination Length
E-Switch 1003P1T7B13M2QE	Brass Chrome Plated	40000	28 V	13 mm	On-On	3PDT	Standard Round	15/32-32	Panel Mount	Epoxy Sealed Terminals	120 V	11.91 mm	Circular	5 A	85 °C	-30 °C	PC Pin	Non-Illuminated
E-Switch 1003P1T2B4M6QE	Brass Chrome Plated	40000	28 V	5.08 mm	On-On	3PDT	Standard Round	Unthreaded	Right Angle Through Hole	Epoxy Sealed Terminals	120 V			5 A	85 °C	-30 °C	PC Pin	Non-Illuminated
E-Switch 1003P1T1B5M7REH	Brass Chrome Plated	40000	20 V	10.41 mm	On-On	3PDT	Standard Round	1/4-40	Panel Mount Right Angle Vertical	Epoxy Sealed Terminals	20 V	0.25 "	Circular	0.4 VA	85 °C	-30 °C	PC Pin	Non-Illuminated
E-Switch 1003P1T1B1M53QE	Brass Chrome Plated	40000	28 V	10.41 mm	On-On	3PDT	Standard Round	1/4-40	Panel Mount	Epoxy Sealed Terminals	120 V	0.25 "	Circular	5 A	85 °C	-30 °C	Wire Wrap	Non-Illuminated
E-Switch 1003P1T2B2M2RE	Brass Chrome Plated	40000	20 V	5.08 mm	On-On	3PDT	Standard Round	Unthreaded	Through Hole	Epoxy Sealed Terminals	20 V			0.4 VA	85 °C	-30 °C	PC Pin	Non-Illuminated
E-Switch 1003P1T1B1M7QE	Brass Chrome Plated	40000	28 V	10.41 mm	On-On	3PDT	Standard Round	1/4-40	Panel Mount Right Angle Vertical	Epoxy Sealed Terminals	120 V	0.25 "	Circular	5 A	85 °C	-30 °C	PC Pin	Non-Illuminated
E-Switch 1003P1T1B1M2QE	Brass Chrome Plated	40000	28 V	10.41 mm	On-On	3PDT	Standard Round	1/4-40	Panel Mount	Epoxy Sealed Terminals	120 V	0.25 "	Circular	5 A	85 °C	-30 °C	PC Pin	Non-Illuminated
E-Switch 1003P1T5B3M2QEH	Brass Chrome Plated	40000	28 V	21.34 mm	On-On	3PDT	Standard Round	1/4-40	Panel Mount	Epoxy Sealed Terminals	120 V	0.25 "	Circular	5 A	85 °C	-30 °C	PC Pin	Non-Illuminated
E-Switch 1003P1T1B3M3QE	Brass Chrome Plated	40000	28 V	10.41 mm	On-On	3PDT	Standard Round	1/4-40	Panel Mount	Epoxy Sealed Terminals	120 V	0.25 "	Circular	5 A	85 °C	-30 °C	Quick Connect	Non-Illuminated	0.062 in
E-Switch 1003P1T2B1M2QE	Brass Chrome Plated	40000	28 V	5.08 mm	On-On	3PDT	Standard Round	1/4-40	Panel Mount	Epoxy Sealed Terminals	120 V	0.25 "	Circular	5 A	85 °C	-30 °C	PC Pin	Non-Illuminated
