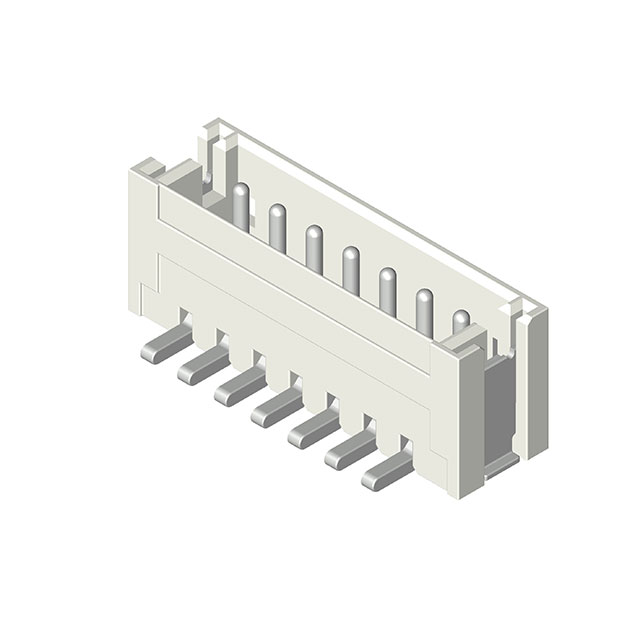

CI1506M1VR0-NH

Active

Cvilux USA

6 POS 1.50MM(.059) WIRE TO BOARD

Search across all available documentation for this part.

Active

Cvilux USA

6 POS 1.50MM(.059) WIRE TO BOARD

Technical Specifications

Parameters and characteristics for this part

Specification	CI1506M1VR0-NH

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	120 µin
Contact Finish Thickness - Mating	3.05 Ám
Contact Finish Thickness - Post	120 Áin
Contact Finish Thickness - Post	3.05 Ám
Contact Length - Mating [x]	0.093 "
Contact Length - Mating [x]	2.36 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Detent Lock
Features	Pick and Place, Solder Retention
Insulation Color	Natural
Insulation Height	0.199 in
Insulation Height	5.05 mm
Insulation Material	Plastic, Halogen Free
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 VAC

Part	Fastening Type	Shrouding	Number of Positions Loaded	Connector Type	Insulation Color	Mounting Type	Material Flammability Rating	Voltage Rating	Number of Positions	Features	Contact Type	Contact Finish - Post	Insulation Material	Number of Rows	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating [x]	Contact Length - Mating [x]	Style	Contact Shape	Contact Length - Mating	Contact Length - Mating
Cvilux USA CI1506M1VR0-NH	Detent Lock	Shrouded - 4 Wall	All	Header	Natural	Surface Mount	UL94 V-0	50 VAC	6	Pick and Place Solder Retention	Male Pin	Tin	Plastic Halogen Free	1	Brass	120 µin	3.05 Ám	120 Áin	3.05 Ám	Solder	0.199 in	5.05 mm	-25 °C	85 °C	0.093 "	2.36 mm	Board to Cable/Wire	Square
Cvilux USA CI1506M1HR0-NH	Detent Lock	Shrouded - 4 Wall	All	Header	Natural	Surface Mount Right Angle	UL94 V-0	50 VAC	6	Solder Retention	Male Pin	Tin	Polyamide (PA46) Nylon 4/6	1	Brass	120 µin	3.05 Ám	120 Áin	3.05 Ám	Solder	0.148 in	3.75 mm	-25 °C	85 °C			Board to Cable/Wire	Square	0.1 in	2.54 mm
