EN2P7M26P

Active

Switchcraft Inc.

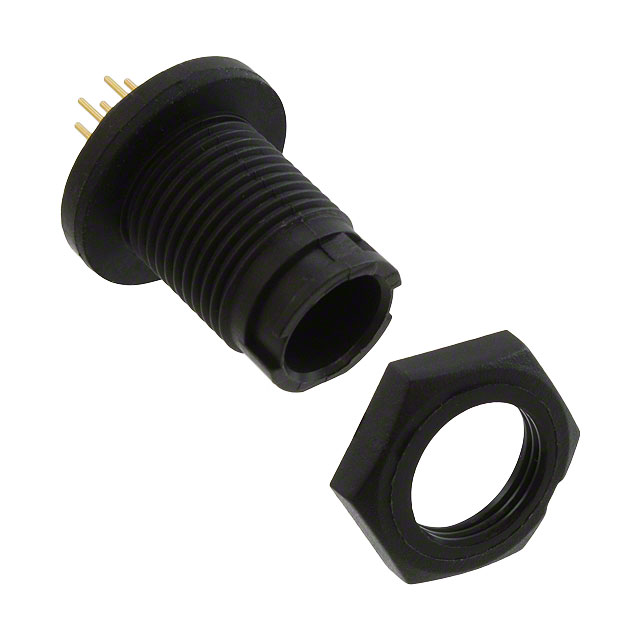

CONN RCPT MALE 7POS GOLD SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE 7POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN2P7M26P	EN2P7M Series

Applications	Marine, Communication Systems, Medical, Industrial	Marine, Communication Systems, Medical, Industrial
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	7	7
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Solder	Solder, Crimp, Solder Cup
Voltage Rating	125 VAC	125 VAC

CONN RCPT MALE 7POS GOLD SOLDER

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Ingress Protection	Shielding	Primary Material	Insert Material	Orientation	Contact Finish - Mating	Voltage Rating	Fastening Type	Applications	Color	Contact Material	Termination	Mounting Type	Mounting Feature	Number of Positions	Connector Type
Switchcraft Inc. EN2P7M26P	85 °C	-40 °C	UL94 V-0	IP66, IP67, IP68	Unshielded	Plastic	Elastomer	Keyed	Gold	125 VAC	Bayonet Lock	Communication Systems, Industrial, Marine, Medical	Black	Copper Alloy	Solder	Panel Mount, Through Hole	Bulkhead - Front Side Nut	7	Male Pins, Receptacle
Switchcraft Inc. EN2P7M26K	85 °C	-40 °C	UL94 V-0	IP66, IP67, IP68	Unshielded	Plastic	Elastomer	Keyed	Gold	125 VAC	Bayonet Lock	Communication Systems, Industrial, Marine, Medical	Black	Copper Alloy	Crimp, Solder Cup		Bulkhead - Front Side Nut	7	Male Pins, Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Male Pins Solder
