ELVH-150G-HANJ-I-NAA4

Active

Amphenol All Sensors Corporation

SENSOR 149.97PSIG 0.19"

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 149.97PSIG 0.19"

Technical Specifications

Parameters and characteristics commom to parts in this series

SENSOR 149.97PSIG 0.19" 14BIT

Part	Operating Pressure	Operating Pressure	Accuracy	Output Type	Package / Case	Package / Case	Termination Style	Port Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Output	Pressure Type	Features	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Size	Port Size	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol All Sensors Corporation ELVH-150G-HAND-C-PSA4	1034.21 kPa	150 PSI	0.25 %	SPI	0.524 ", 13.3 mm	8-DIP	PC Pin	Barbed	250.05 PSI	1724 kPa	14 b	Gauge	Temperature Compensated	Through Hole	2.7 V	5.5 V	4.93 mm	0.19 "
Amphenol All Sensors Corporation ELVH-150G-HANJ-I-NAA4	1034.21 kPa	150 PSI	0.25 %	Analog Voltage		8-SMD, J-Lead, Top Port	J Lead	Barbed	250.05 PSI	1724 kPa		Gauge	Temperature Compensated	Surface Mount	2.7 V	5.5 V	4.93 mm	0.19 "	85 °C	-20 C
Amphenol All Sensors Corporation ELVH-150G-HAND-I-N2A4	1034.21 kPa	150 PSI	0.25 %	I2C	0.524 ", 13.3 mm	8-DIP	PC Pin	Barbed	250.05 PSI	1724 kPa	14 b	Gauge	Temperature Compensated	Through Hole	2.7 V	5.5 V	4.93 mm	0.19 "	85 °C	-20 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

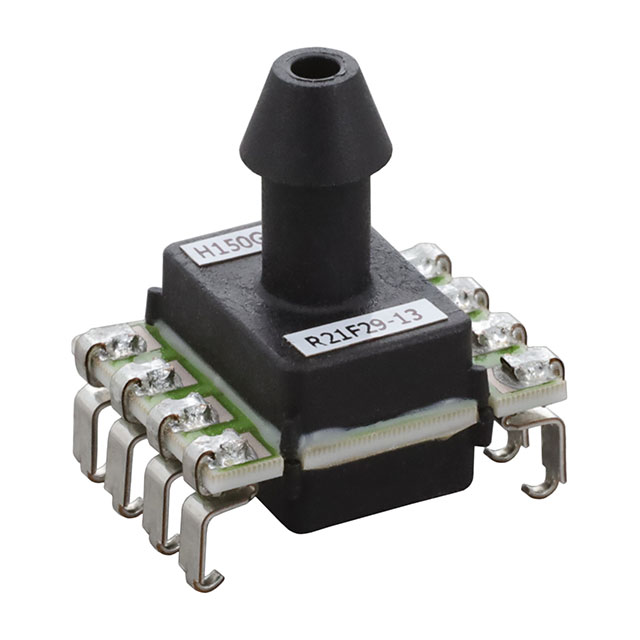

Pressure Sensor 150PSI (1034.21kPa) Gauge Male - 0.19" (4.93mm) Tube 8-SMD, J-Lead, Top Port
