1339-1-60

Active

3M (TC)

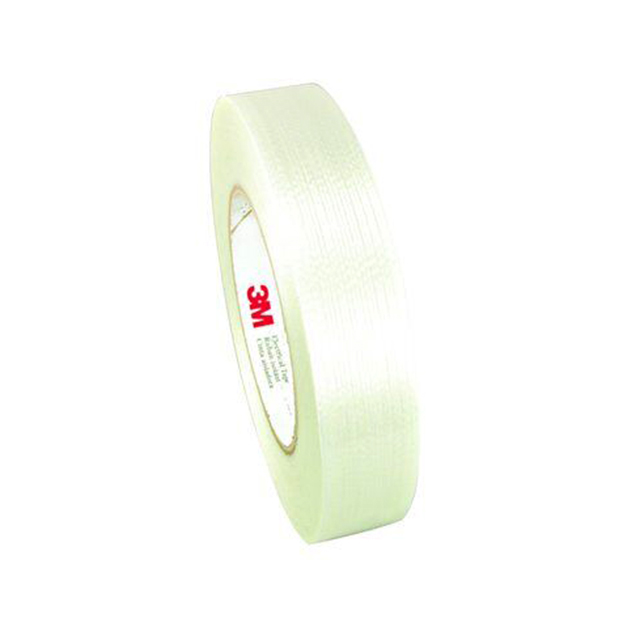

TAPE ELECTRICAL 1"X60YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1339-1-60

Active

3M (TC)

TAPE ELECTRICAL 1"X60YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1339-1-60

Adhesive	Acrylic
Backing, Carrier	Polyester Film
Length	60 yds
Length	55 m
Length	180 ft
Tape Type	Electrical
Temperature Range [Max]	130 °C
Temperature Range [Min]	0 °C
Thickness	0.0065 in
Thickness	6.5 mils
Thickness	0.165 mm
Width [x]	25.4 mm
Width [x]	1 in

1339 Series

Part	Width	Width	Width	Adhesive	Thickness	Thickness	Thickness	Length	Length	Length	Temperature Range [Max]	Tape Type	Backing, Carrier	Shelf Life	Shelf Life Start	Usage	Color	Width [x]	Width [x]	Width [y]	Width [y]
3M (TC) 1339-1.125-60	1.13 in	28.58 mm		Acrylic	0.0065 in	6.5 mils	0.165 mm	60 yds	55 m	180 ft	130 °C	Electrical	Polyester Film
3M (TC) 1339-0.25-60	0.25 in	6.35 mm	0.25 in	Acrylic	0.0065 in	6.5 mils	0.165 mm	60 yds	55 m	180 ft	130 °C	Electrical	Polyester Film
3M (TC) 1339MC1515MMX55M	0.98 "	25 mm		Rubber Thermosetting	0.0008 in	0.8 mils	0.02 mm	72 yd	66 m	216 ft	130 °C	Electrical	Polyester Film	60 Months	Date of Manufacture	General Purpose	Yellow
3M (TC) 3M 1339 6" X 60YD				Acrylic	0.0065 in	6.5 mils	0.165 mm	60 yds	55 m	180 ft	130 °C	Electrical	Polyester Film					6 in	152.4 mm
3M (TC) 3M 1339 0.563" X 60YD	0.56 "	14.3 mm	0.5625 "	Acrylic	0.0065 in	6.5 mils	0.165 mm	60 yds	55 m	180 ft	130 °C	Electrical	Polyester Film	60 Months	Date of Manufacture
3M (TC) 1339-2-60				Acrylic	0.0065 in	6.5 mils	0.165 mm	60 yds	55 m	180 ft	130 °C	Electrical	Polyester Film							2 "	50.8 mm
3M (TC) 3M 1339 0.625" X 60YD	0.63 in	16 mm	0.625 in	Acrylic	0.0065 in	6.5 mils	0.165 mm	60 yds	55 m	180 ft	130 °C	Electrical	Polyester Film
3M (TC) 1339-3/4"X60YD	0.75 in	0.75 in	19.05 mm	Acrylic	0.0065 in	6.5 mils	0.165 mm	60 yds	55 m	180 ft	130 °C	Electrical	Polyester		Date of Manufacture		Translucent
3M (TC) 3M 1339 9" X 60YD				Acrylic	0.0065 in	6.5 mils	0.165 mm	60 yds	55 m	180 ft	130 °C	Electrical	Polyester Film					9 in	228.6 mm
3M (TC) 1339-1-60				Acrylic	0.0065 in	6.5 mils	0.165 mm	60 yds	55 m	180 ft	130 °C	Electrical	Polyester Film					1 in	25.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 53.49
		10	$ 50.51
		25	$ 47.54
		50	$ 44.57
		100	$ 41.60
		250	$ 39.52

Description

General part information

1339 Series

Electrical Tape Acrylic Adhesive 1.00" (25.40mm) X 180' (55.0m) 60 yds

Documents

Technical documentation and resources
