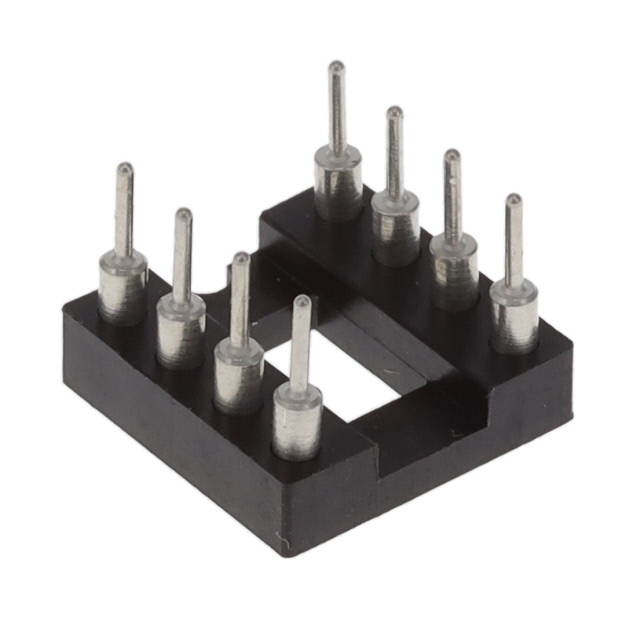

ICA-308-STT

Active

Samtec Inc.

CONN IC DIP SOCKET 8POS TIN

Search across all available documentation for this part.

Active

Samtec Inc.

CONN IC DIP SOCKET 8POS TIN

Technical Specifications

Parameters and characteristics for this part

Specification	ICA-308-STT

Contact Finish - Post	Tin
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	10 mOhm
Current Rating (Amps)	1 A
Features	Open Frame
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	0.3 "
Type	7.62 mm
Type	DIP

Part	Contact Material - Post [custom]	Mounting Type	Current Rating (Amps)	Termination	Type	Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions or Pins (Grid)	Contact Finish - Post	Material Flammability Rating	Features	Contact Material - Mating	Contact Resistance	Pitch - Mating	Pitch - Mating	Pitch - Post	Pitch - Post	Termination Post Length	Termination Post Length	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Samtec Inc. ICA-308-STT	Brass	Through Hole	1 A	Solder	0.3 "	7.62 mm	DIP	105 ░C	-55 °C	8	Tin	UL94 V-0	Open Frame	Beryllium Copper	10 mOhm	0.1 in	2.54 mm	2.54 mm	0.1 in	3.18 mm	0.125 in
Samtec Inc. ICA-308-SGG	Brass	Through Hole	1 A	Solder	0.3 "	7.62 mm	DIP	125 °C	-55 °C	8	Gold	UL94 V-0	Open Frame	Beryllium Copper	10 mOhm	0.1 in	2.54 mm	2.54 mm	0.1 in	3.18 mm	0.125 in	30 µin	0.76 µm	Gold	30 Áin	0.76 Ám
Samtec Inc. ICA-308-SGT	Brass	Through Hole	1 A	Solder	0.3 "	7.62 mm	DIP	125 °C	-55 °C	8	Tin	UL94 V-0	Open Frame	Beryllium Copper	10 mOhm	0.1 in	2.54 mm	2.54 mm	0.1 in	3.18 mm	0.125 in	10 çin	0.25 çm	Gold	30 Áin	0.76 Ám
