PT06E-12-8P

Active

Amphenol Industrial Operations

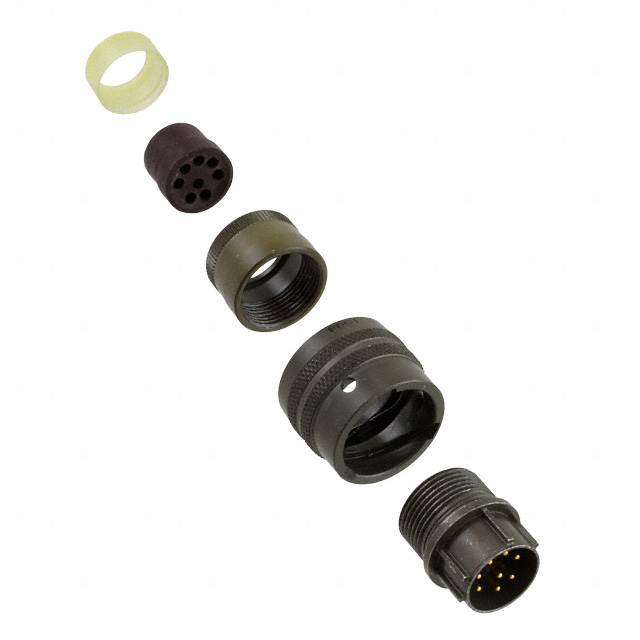

CONN PLUG MALE 8P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

Documents10-101949-010 Datasheet

PT06E-12-8P

Active

Amphenol Industrial Operations

CONN PLUG MALE 8P GOLD SLDR CUP

Deep-Dive with AI

Documents10-101949-010 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PT06E-12-8P	PT06E Series

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial	Communication Systems, Industrial, Mass Transit, Aerospace, Instrumentation, Military
Backshell Material, Plating	Olive Drab Cadmium, Aluminum	Olive Drab Cadmium, Aluminum, Black Zinc Cobalt, Anodic Coating (Alumilite), Electroless Nickel
Cable Opening	-	3.18 - 12.7 mm
Cable Opening	-	0.125 - 0.5 in
Color	Olive Drab	Olive Drab, Black, Silver
Connector Type	Plug, Male Pins	Female Sockets, Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, Backshell	Strain Relief, Coupling Nut, Backshell, Cable Clamp
Ingress Protection	Environment Sealed	Environment Resistant, Environment Sealed
Insert Material	Neoprene	Neoprene
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	8	2 - 55
Number of Positions	-	16
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	N	N, W, X, Y, Z
Primary Material	Metal	Metal
Qualification	MIL-DTL-26482 Series I	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium	Olive Drab Chromate over Cadmium, Black Zinc Cobalt, Anodic Coating (Alumilite), Electroless Nickel
Shell Material	Aluminum	Aluminum
Shell Size - Insert	12-8	10-6, 14-5, 8-4, 14-12, 8-2, 12-8, 12-4, 8-3, 18-11, 12-3, 10-5, 10-2
Shell Size - Insert	-	15 - 98
Shell Size - Insert	-	10 - 22
Shell Size - Insert	-	19
Shell Size - Insert	-	14
Shell Size - Insert	-	20
Shell Size - Insert	-	16
Shielding	Unshielded	Unshielded
Voltage Rating	-	600 - 1000 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.90
		10	$ 15.51
		100	$ 12.79

PT06E Series

PT 39C 2#16,37#20 SKT PLUG

Part	Shell Material	Applications	Primary Material	Color	Connector Type	Orientation	Contact Material	Fastening Type	Backshell Material, Plating	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Finish - Mating	Features	Ingress Protection	Qualification	Insert Material	Shell Finish	Number of Positions	Shielding	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Shell Size - Insert	Voltage Rating	Number of Positions	Shell Size - Insert [Max] [diameter]	Shell Size - Insert [Min] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Amphenol Industrial Operations PT06E20-39S-SR	Aluminum	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Metal	Olive Drab	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium	39	20	Gold	Strain Relief	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	39	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E-14-19P	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Male Pins, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Backshell, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	19	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C	19	14
Amphenol Industrial Operations PT06E10-6S-476	Aluminum	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Metal	Black	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Black Zinc Cobalt			Gold		Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Black Zinc Cobalt	6	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			10-6	600 VAC
Amphenol Industrial Operations PT06E-14-5S(476)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Black	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Black Zinc Cobalt			Gold	Backshell, Cable Clamp, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Black Zinc Cobalt		Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			14-5
Amphenol Industrial Operations PT06E-16-8P(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Male Pins, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	8	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E-8-4S(025)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Black	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Black Zinc Cobalt			Gold	Backshell, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Black Zinc Cobalt	4	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			8-4
Amphenol Industrial Operations PT06E-14-12S(470)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Black	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Black Zinc Cobalt			Gold	Backshell, Cable Clamp, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Black Zinc Cobalt	12	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			14-12
Amphenol Industrial Operations PT06E-14-19S(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	19	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C	19	14
Amphenol Industrial Operations PT06E-10-6PW	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Male Pins, Plug	W	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Backshell, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	6	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			10-6
Amphenol Industrial Operations PT06E-8-2P	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Male Pins, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Backshell, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	2	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			8-2
Amphenol Industrial Operations PT06E-16-26S(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium	26	16	Gold	Strain Relief	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	26	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E12-8PX-SR	Aluminum	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Metal	Olive Drab	Male Pins, Plug	X	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	8	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			12-8
Amphenol Industrial Operations PT06E12-4PW-SR	Aluminum	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Metal	Olive Drab	Male Pins, Plug	W	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	4	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			12-4
Amphenol Industrial Operations PT06E8-3S-470	Aluminum	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Metal	Black	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Black Zinc Cobalt			Gold		Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Black Zinc Cobalt		Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			8-3	600 VAC
Amphenol Industrial Operations PT06E-16-26SX(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	X	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium	26	16	Gold	Strain Relief	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	26	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E-16-8SW005	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal		Female Sockets, Plug	W	Copper Alloy	Bayonet Lock	Aluminum, Anodic Coating (Alumilite)				Backshell, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Anodic Coating (Alumilite)	8	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E-16-23S	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium	23	16	Gold	Backshell, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	23	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E10-6S-424	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Silver	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Electroless Nickel			Gold		Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Electroless Nickel	6	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			10-6	600 VAC
Amphenol Industrial Operations PT06E-14-19S(470)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Black	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Black Zinc Cobalt			Gold	Backshell, Cable Clamp, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Black Zinc Cobalt	19	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C	19	14
Amphenol Industrial Operations PT06E-10-6S(470)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Black	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Black Zinc Cobalt			Gold	Backshell, Cable Clamp, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Black Zinc Cobalt	6	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			10-6
Amphenol Industrial Operations PT06E-14-18S(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium	18	14	Gold	Strain Relief	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	18	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E-14-19P(470)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Black	Male Pins, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Black Zinc Cobalt			Gold	Backshell, Cable Clamp, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Black Zinc Cobalt	19	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C	19	14
Amphenol Industrial Operations PT06E-8-2S	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Backshell, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	2	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			8-2
Amphenol Industrial Operations PT06E22-55PX	Aluminum	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Metal	Olive Drab	Male Pins, Plug	X	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium	55	22	Gold		Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	55 positions	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E20-16PY-SR	Aluminum	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Metal	Olive Drab	Male Pins, Plug	Y	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium		Unshielded	Free Hanging (In-Line)	-55 °C	125 °C					16	20	16
Amphenol Industrial Operations PT06E-18-32S(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium	32	18	Gold	Strain Relief	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium		Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E12-8PW-SR	Aluminum	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Metal	Olive Drab	Male Pins, Plug	W	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	8	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			12-8
Amphenol Industrial Operations PT06E-8-4S(470)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Black	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Black Zinc Cobalt			Gold	Backshell, Cable Clamp, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Black Zinc Cobalt	4	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			8-4
Amphenol Industrial Operations PT06E-14-12P	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Male Pins, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Backshell, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	12	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			14-12
Amphenol Industrial Operations PT06E-14-19S	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Backshell, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	19	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C	19	14
Amphenol Industrial Operations PT06E-12-4S(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	4	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			12-4
Amphenol Industrial Operations PT06E-12-10P(470)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Black	Male Pins, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Black Zinc Cobalt			Gold	Backshell, Cable Clamp, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Black Zinc Cobalt	10	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E14-12SX-SR	Aluminum	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Metal	Olive Drab	Female Sockets, Plug	X	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	12	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			14-12
Amphenol Industrial Operations PT06E-22-55S(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium	55	22	Gold	Strain Relief	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	55 positions	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E-14-12PW(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Male Pins, Plug	W	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	12	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			14-12
Amphenol Industrial Operations PT06E-12-10P(476)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Black	Male Pins, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Black Zinc Cobalt			Gold	Backshell, Cable Clamp, Coupling Nut	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Black Zinc Cobalt	10	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E16-8P-SR	Aluminum	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Metal	Olive Drab	Male Pins, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	8	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C				1000 VAC				12.7 mm	0.5 in
Amphenol Industrial Operations PT06E20-16S(470)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Black	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Black Zinc Cobalt			Gold	Backshell, Cable Clamp, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Black Zinc Cobalt		Unshielded	Free Hanging (In-Line)	-55 °C	125 °C					16	20	16
Amphenol Industrial Operations PT06E-8-4P	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Male Pins, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Backshell, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	4	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			8-4
Amphenol Industrial Operations PT06E-10-98S(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium	98	10	Gold	Strain Relief	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	6	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E-12-4S	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Backshell, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	4	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			12-4
Amphenol Industrial Operations PT06E-12-8P	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Male Pins, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Backshell, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	8	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			12-8
Amphenol Industrial Operations PT06E-10-6S	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Backshell, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	6	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			10-6
Amphenol Industrial Operations PT06E-20-16S	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Backshell, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium		Unshielded	Free Hanging (In-Line)	-55 °C	125 °C					16	20	16
Amphenol Industrial Operations PT06E18-11PW-476	Aluminum	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Metal	Black	Male Pins, Plug	W	Copper Alloy	Bayonet Lock	Aluminum, Black Zinc Cobalt			Gold		Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Black Zinc Cobalt	11	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			18-11
Amphenol Industrial Operations PT06E-12-3S(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium		Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			12-3
Amphenol Industrial Operations PT06E-10-5P(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Male Pins, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium		Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			10-5
Amphenol Industrial Operations PT06E-8-4S(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	4	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			8-4
Amphenol Industrial Operations PT06E-12-10S(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	10	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E-20-16S(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium		Unshielded	Free Hanging (In-Line)	-55 °C	125 °C					16	20	16
Amphenol Industrial Operations PT06E-10-6P	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Male Pins, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Backshell, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	6	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			10-6
Amphenol Industrial Operations PT06E-12-8S	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Backshell, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	8	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			12-8
Amphenol Industrial Operations PT06E-14-19P(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Male Pins, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	19	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C	19	14
Amphenol Industrial Operations PT06E8-4P-SR	Aluminum	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Metal	Olive Drab	Male Pins, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	4	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			8-4	600 VAC				3.18 mm	0.125 in
Amphenol Industrial Operations PT06E-12-10S(476)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Black	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Black Zinc Cobalt			Gold	Backshell, Cable Clamp, Coupling Nut	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Black Zinc Cobalt	10	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E-18-32P(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Male Pins, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium	32	18	Gold	Strain Relief	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium		Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E14-15SW-SR	Aluminum	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Metal	Olive Drab	Female Sockets, Plug	W	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium	15	14	Gold	Strain Relief	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	15	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E-10-98P(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Male Pins, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium	98	10	Gold	Strain Relief	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	6	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E12-4S-476	Aluminum	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Metal	Black	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Black Zinc Cobalt			Gold		Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Black Zinc Cobalt	4	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			12-4
Amphenol Industrial Operations PT06E-14-18SX	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	X	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium	18	14	Gold	Backshell, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	18	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E20-16S-027	Aluminum	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Metal	Black	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Black Zinc Cobalt			Gold		Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Black Zinc Cobalt		Unshielded	Free Hanging (In-Line)	-55 °C	125 °C					16	20	16
Amphenol Industrial Operations PT06E-16-8S(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	8	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E10-2S-SR	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	2	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			10-2
Amphenol Industrial Operations PT06E-12-10SW(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	W	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	10	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E-12-3P(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Male Pins, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium		Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			12-3
Amphenol Industrial Operations PT06E-12-8P(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Male Pins, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	8	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			12-8
Amphenol Industrial Operations PT06E16-26P-470	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Black	Male Pins, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Black Zinc Cobalt	26	16	Gold		Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Black Zinc Cobalt	26	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C				600 VAC
Amphenol Industrial Operations PT06E-22-55S(470)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Black	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Black Zinc Cobalt	55	22	Gold	Backshell, Cable Clamp, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Black Zinc Cobalt	55 positions	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E-8-4P(470)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Black	Male Pins, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Black Zinc Cobalt			Gold	Backshell, Cable Clamp, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Black Zinc Cobalt	4	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			8-4
Amphenol Industrial Operations PT06E-8-2SW(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	W	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	2	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			8-2
Amphenol Industrial Operations PT06E-8-2P(SR)	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Male Pins, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium			Gold	Strain Relief	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	2	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C			8-2
Amphenol Industrial Operations PT06E16-26S-SR	Aluminum	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Metal	Olive Drab	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium	26	16	Gold	Strain Relief	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	26	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E-16-26S	Aluminum	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Metal	Olive Drab	Female Sockets, Plug	N	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium	26	16	Gold	Backshell, Coupling Nut	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	26	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E22-55PW-SR	Aluminum	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Metal	Olive Drab	Male Pins, Plug	W	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium	55	22	Gold	Strain Relief	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	55 positions	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C
Amphenol Industrial Operations PT06E20-27PZ-SR	Aluminum	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Metal	Olive Drab	Male Pins, Plug	Z	Copper Alloy	Bayonet Lock	Aluminum, Olive Drab Cadmium	27	20	Gold	Strain Relief	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Olive Drab Chromate over Cadmium	27	Unshielded	Free Hanging (In-Line)	-55 °C	125 °C

Description

General part information

PT06E Series

8 Position Circular Connector Plug, Male Pins Solder Cup
